GATE 2021 ST – Question 10

General Aptitude · Spatial Aptitude: Spatial Reasoning and Visualization · 2 marks · Multiple choice

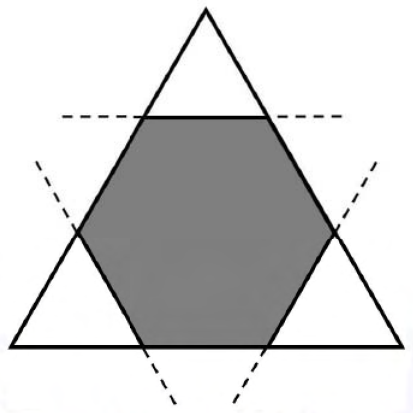

Corners are cut from an equilateral triangle to produce the regular convex hexagon shown. Find the ratio of hexagon area to original triangle area.

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (A) 2:3

Explanation

If the hexagon side is a,each removed corner triangle has side a and the original triangle has side 3a. Its area is nine times one corner triangle. Removing three such triangles leaves six ninths of the original area. Ratio=6:9=**2:3, A**.
