GATE 2025 EE – Question 41

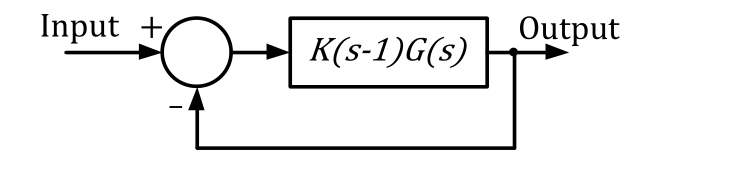

Let $G(s)=\dfrac1{(s+1)(s+2)}$. Then the closed-loop system shown in the figure below, is

Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: (B) unstable for all $K>2$.
Explanation
The open loop is $\dfrac{K(s-1)}{(s+1)(s+2)}$, so the characteristic equation is $(s+1)(s+2)+K(s-1)=s^2+(3+K)s+(2-K)=0$. For a second-order polynomial all coefficients must be positive: $3+K>0$ and $2-K>0$, i.e. $-3<K<2$. For $K>2$ the constant term is negative, so a root lies in the right half-plane and the system is unstable.
