GATE 2023 EE – Question 13

Control Systems · Stability analysis using Routh-Hurwitz and Nyquist criteria, Bode plots, Root loci · 1 mark · Multiple choice

In the Nyquist plot of the open-loop transfer function

$$G(s)H(s)=\frac{3s+5}{s-1}$$

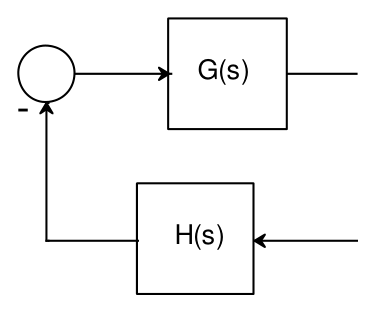

corresponding to the feedback loop shown in the figure, the infinite semi-circular arc of the Nyquist contour in $s$-plane is mapped into a point at

Diagram for GATE 2023 EE question 13
  1. $G(s)H(s)=\infty$
  2. $G(s)H(s)=0$
  3. $G(s)H(s)=3$
  4. $G(s)H(s)=-5$

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (C) $G(s)H(s)=3$

Explanation

On the large semicircle of the Nyquist contour $|s|\to\infty$, so $G(s)H(s)=\dfrac{3s+5}{s-1}\to\dfrac{3s}{s}=3$ for every point of the arc. The whole arc is mapped to the single point $G(s)H(s)=3$.
