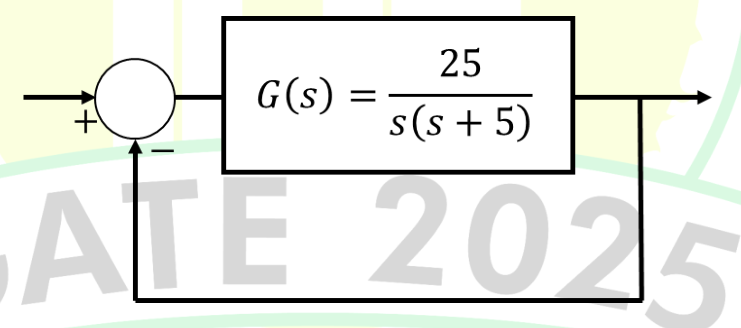

The closed-loop denominator is s(s+5)+25=s²+5s+25. Comparing with s²+2ζωn s+ωn² gives ωn=5 and ζ=5/(2×5)=0.5. Since zero<ζ<one, the response is underdamped, B.
