GATE 2020 EC – Question 65

Control Systems · Transient and Steady-State Analysis of LTI Systems · 2 marks · Numerical answer

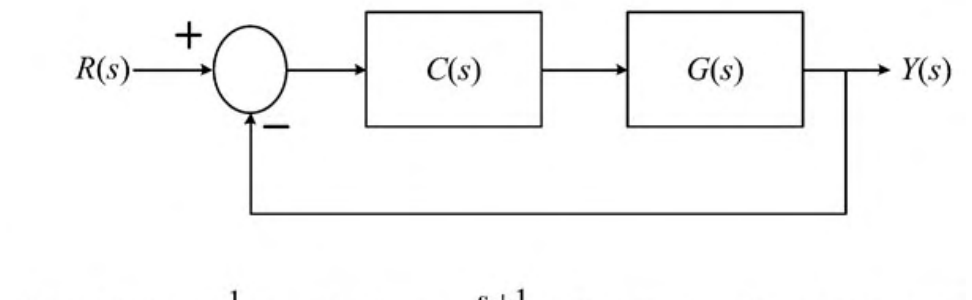

Consider the following closed loop control system

where $G(s)=\dfrac{1}{s(s+1)}$ and $C(s)=K\dfrac{s+1}{s+3}$. If the steady state error for a unit ramp input is 0.1, then the value of $K$ is ________.

Diagram for GATE 2020 EC question 65

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: 30

Explanation

The open-loop transfer function is $C(s)G(s)=\dfrac{K(s+1)}{s(s+1)(s+3)}=\dfrac K{s(s+3)}$ after the common factor $(s+1)$ cancels. It has one integrator, so it is type 1.

Velocity error constant: $K_v=\lim_{s\to0}sC(s)G(s)=\dfrac K3$.

Steady-state ramp error $=\dfrac1{K_v}=\dfrac3K=0.1$, so $K=30$.
