GATE 2024 AR — Planning – Question 23

Design and Graphics · One-point and two- point perspectives · 1 mark · Multiple select

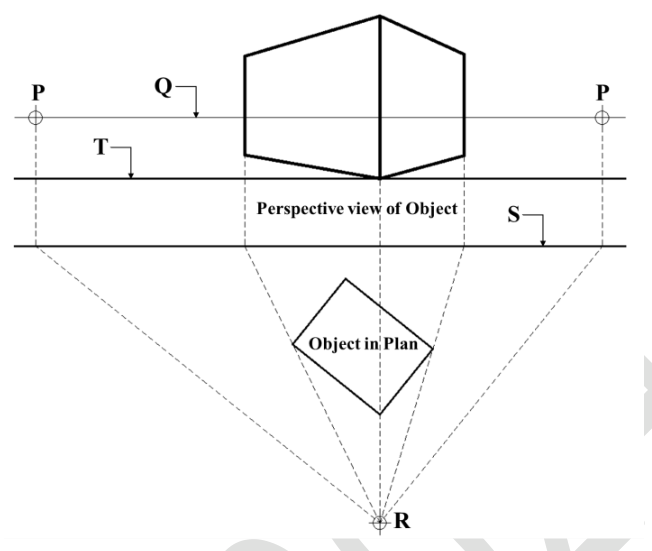

For the two-point perspective construction shown, which nomenclature pairs are correct?

Diagram for GATE 2024 AR — Planning question 23
  1. R station point; S picture plane
  2. R vanishing point; T picture plane
  3. P vanishing point; T ground line
  4. Q ground line; S horizon line

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (A) R station point; S picture plane; (C) P vanishing point; T ground line

Explanation

R is the observer’s station point in plan; S is the picture-plane trace. The two P points are vanishing points on horizon Q, and T is the ground line. Thus A, C. Q and S are not the ground/horizon labels proposed in D.
