GATE 2023 AR — Architecture – Question 13

Computer Applications in Architecture · Architectural visualization: 3d Modelling and BIM, Rendering, Virtual Reality, Augmented Reality · 1 mark · Multiple choice

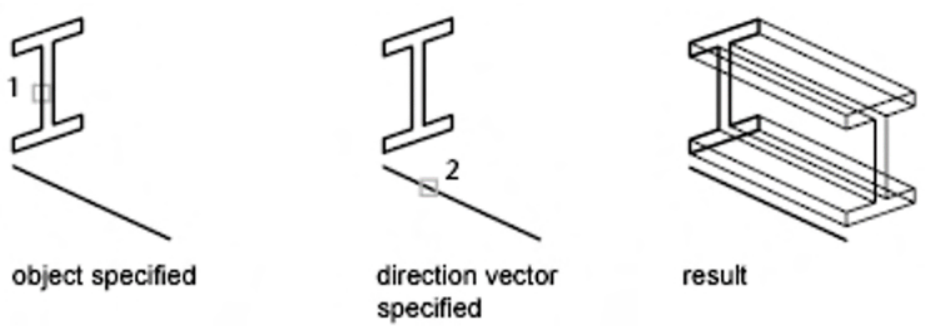

In AutoCAD, which command creates a mesh by sweeping a selected line or curve along a straight path, as shown?

Diagram for GATE 2023 AR — Architecture question 13

TABSURF
REVSURF
RULESURF
EDGESURF

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (A) TABSURF

Explanation

TABSURF generates a tabulated surface by sweeping a profile along a direction vector, matching the illustrated translation. REVSURF revolves a profile, RULESURF spans two curves, and EDGESURF uses boundary edges. Hence A.
