GATE 2023 AR — Planning – Question 23

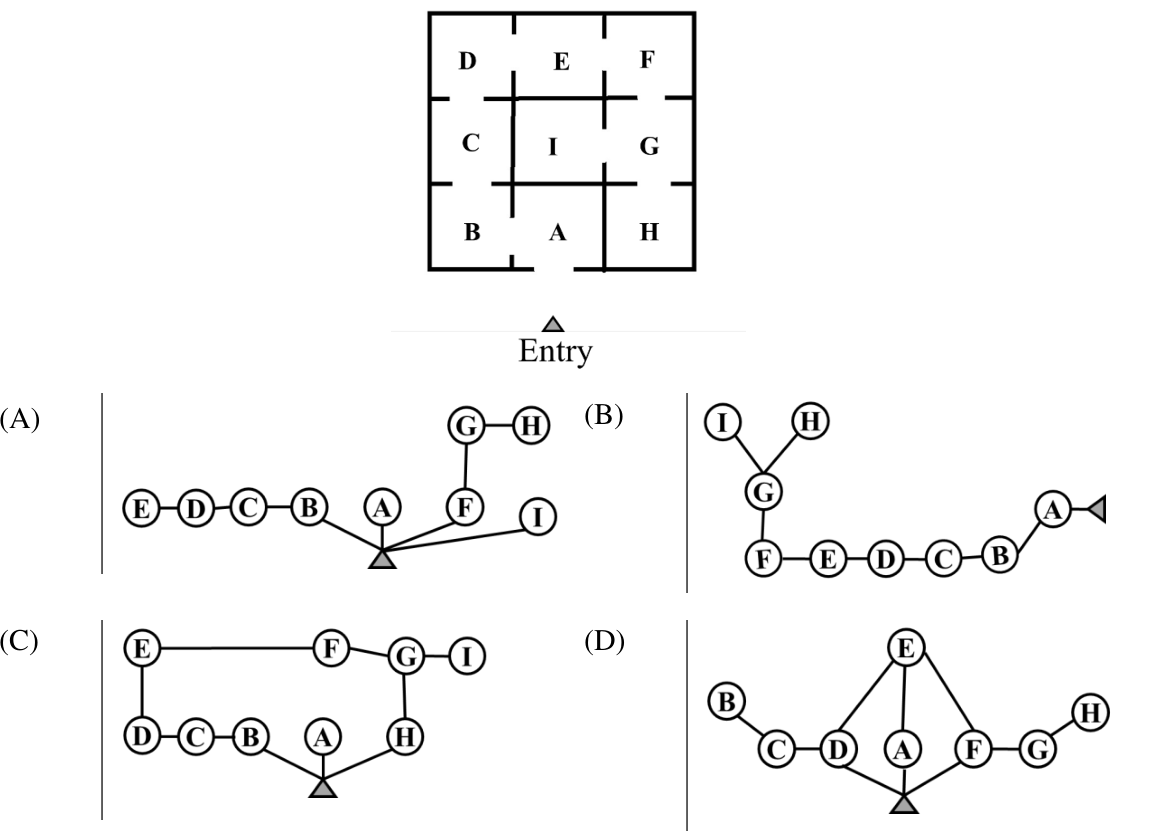

The plan shows rooms and door openings, with an entry from outside. Which diagram correctly represents access between the rooms from that entry?
Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: (B) Diagram B
Explanation
Trace only openings, not rooms that merely share walls. Entry leads to A, then B–C–D–E–F–G; from G the route branches to H and I. Diagram B shows this chain and final branching. The other graphs introduce access connections absent from the plan.
