GATE 2023 AR — Planning – Question 64

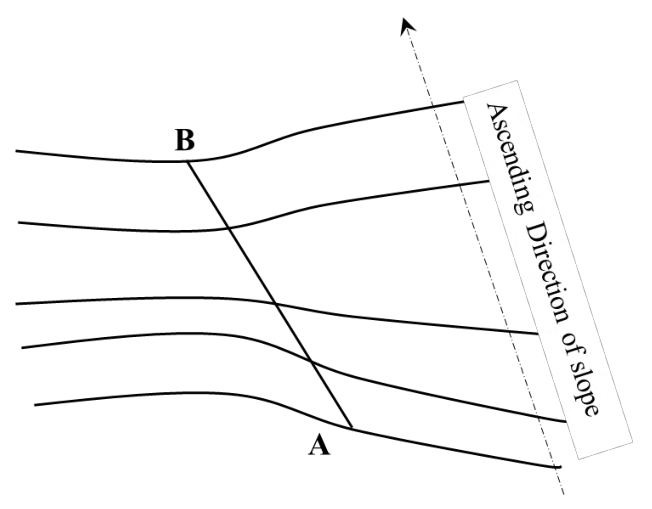

The contour diagram shows points A and B on a continuously ascending surface. The horizontal projection of AB is 200 m and its gradient is 1 in 25. Find the constant contour interval in metres, as an integer.
Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: 2 to 2
Explanation
Vertical difference along AB is 200/25=8 m. The marked endpoints span four contour intervals, so each interval is 8/4=2 m. Count the spaces between successive endpoint contour levels, not the total number of contour lines visible elsewhere.
