GATE 2022 AR — Architecture – Question 27

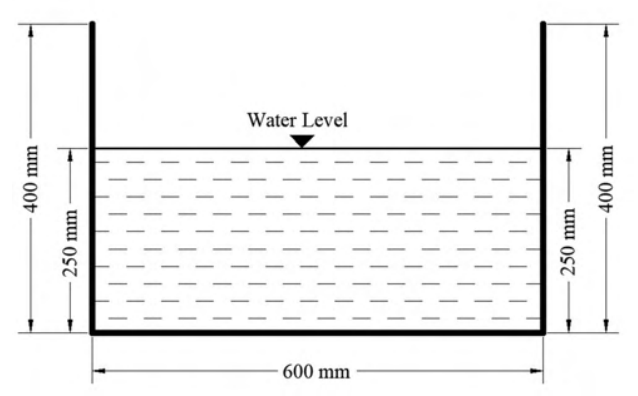

The rectangular open drain shown has internal width 600 mm, total depth 400 mm and water depth 250 mm. Find hydraulic radius in mm, to two decimal places.
Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: 135.00 to 138.00
Explanation
Flow area is 600×250=150000 mm². Wetted perimeter includes the bottom and two submerged sides:600+2×250=1100 mm; the free surface is excluded. Hydraulic radius A/P=150000/1100=136.36 mm. Use water depth 250 mm rather than the full 400 mm drain depth.
