GATE 2019 EC – Question 37

Engineering Mathematics · Vector Analysis · 2 marks · Multiple choice

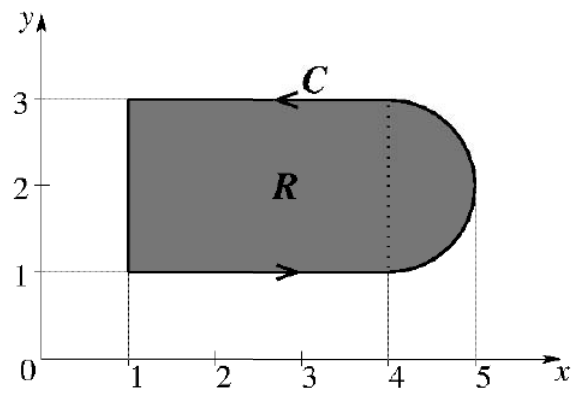

Consider the line integral $\oint_C(x\,dy-y\,dx)$, the integral being taken in a counterclockwise direction over the closed curve $C$ that forms the boundary of the region $R$ shown in the figure below. The region $R$ is the area enclosed by the union of a $2\times3$ rectangle and a semi-circle of radius 1. The line integral evaluates to

Diagram for GATE 2019 EC question 37
  1. $6+\pi/2$
  2. $8+\pi$
  3. $12+\pi$
  4. $16+2\pi$

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (C) $12+\pi$

Explanation

By Green's theorem, $\oint_C(x\,dy-y\,dx)=\iint_R\left(\dfrac{\partial x}{\partial x}+\dfrac{\partial y}{\partial y}\right)dA=2\times\text{Area}(R)$.

Area $=$ rectangle $2\times3=6$ plus semicircle $\tfrac12\pi(1)^2=\tfrac\pi2$, so the area is $6+\tfrac\pi2$.

The integral is $2\left(6+\tfrac\pi2\right)=12+\pi$.
