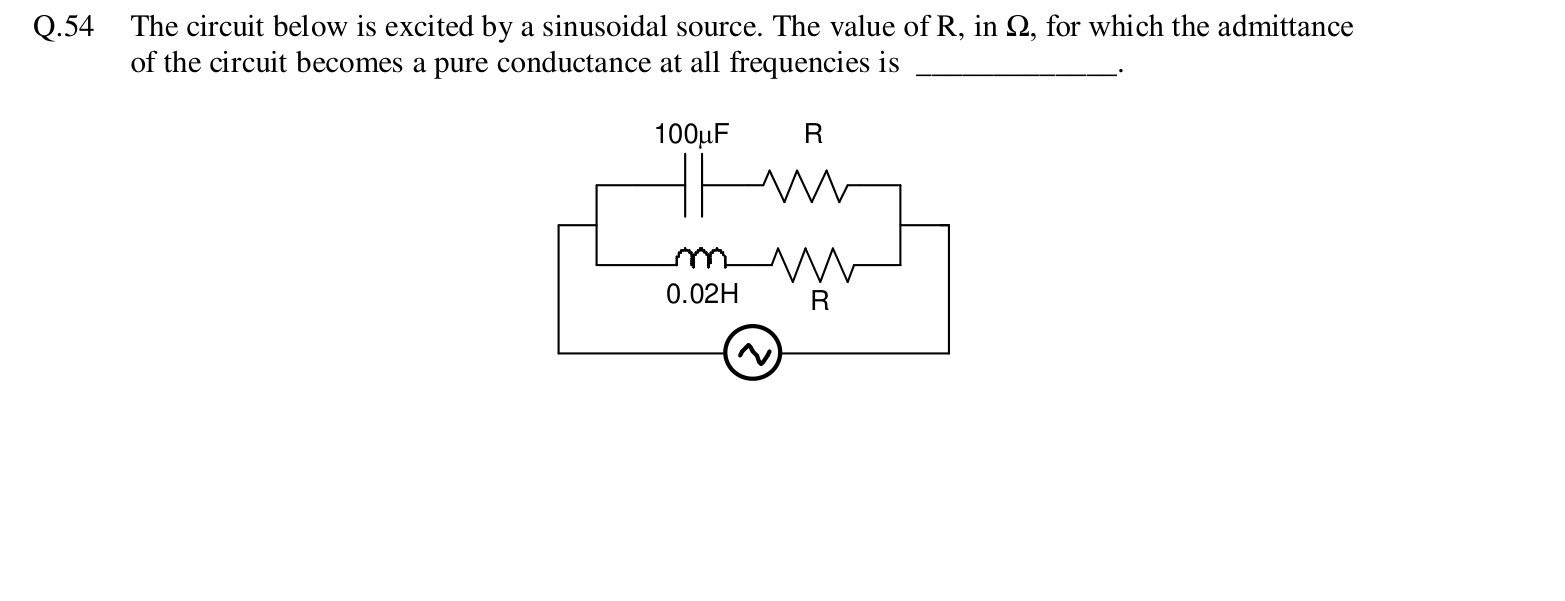

The circuit below is excited by a sinusoidal source. The value of R, in $\Omega$, for which the admittance of the circuit becomes a pure conductance at all frequencies is ________.
The admittance is $Y = \frac{1}{R + \frac{1}{j\omega C}} + \frac{1}{R + j\omega L}$. For this to be real at every frequency, the two branches must satisfy $R^2 = \frac{L}{C}$. Then $R = \sqrt{\frac{0.02}{100 \times 10^{-6}}} = \sqrt{200} = 14.14\ \Omega$.
