GATE 2017 EE – Question 50

Power Systems · Per-unit quantities, Bus admittance matrix, Gauss-Seidel and Newton-Raphson load flow methods · 2 marks · Multiple choice

The bus admittance matrix for a power system network is

$$\begin{bmatrix} -j39.9 & j20 & j20 \\ j20 & -j39.9 & j20 \\ j20 & j20 & -j39.9 \end{bmatrix} \text{ pu.}$$

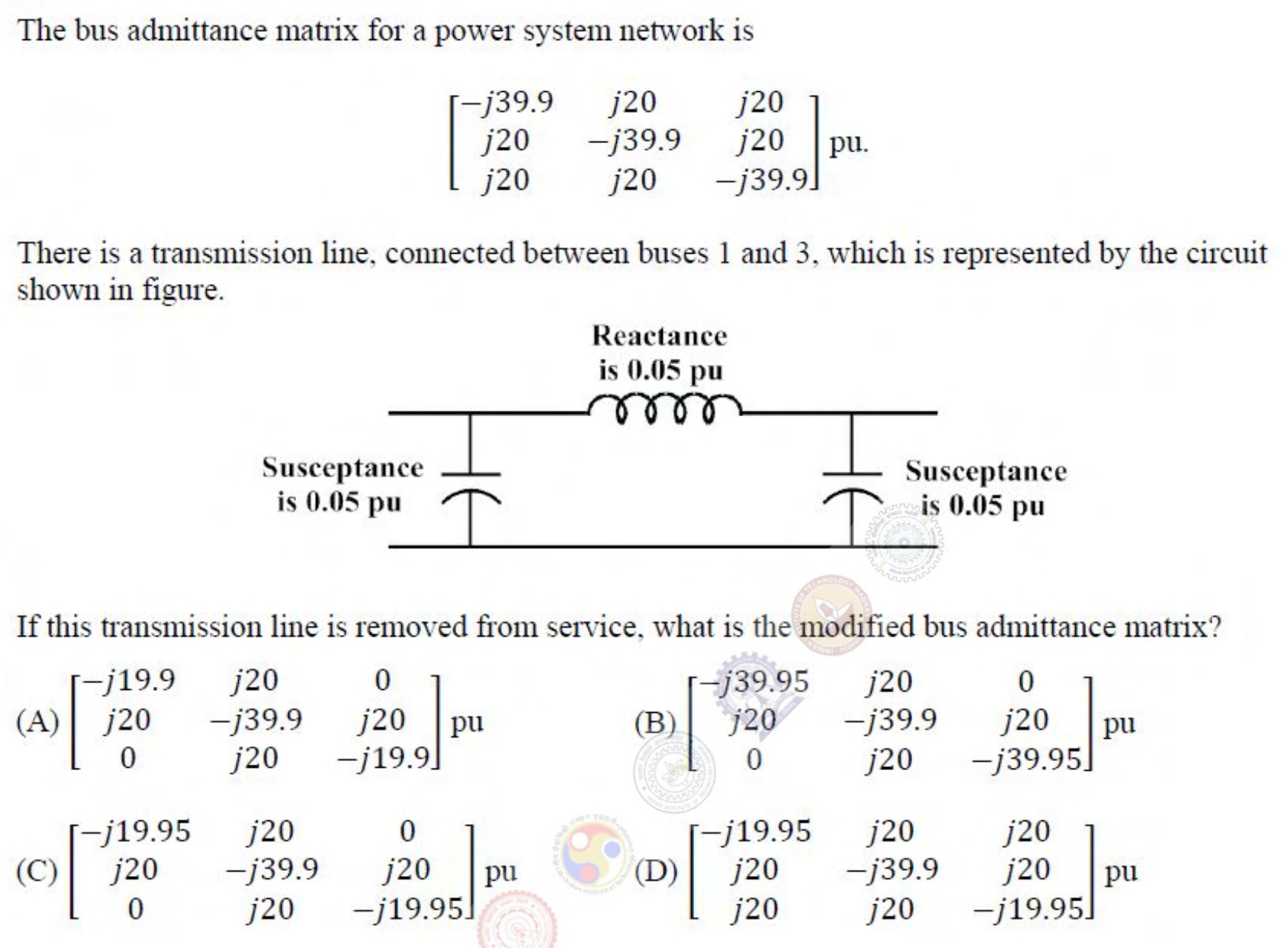

There is a transmission line, connected between buses 1 and 3, which is represented by the circuit shown in figure.

If this transmission line is removed from service, what is the modified bus admittance matrix?

Diagram for GATE 2017 EE question 50
  1. $\begin{bmatrix} -j19.9 & j20 & 0 \\ j20 & -j39.9 & j20 \\ 0 & j20 & -j19.9 \end{bmatrix}$ pu
  2. $\begin{bmatrix} -j39.95 & j20 & 0 \\ j20 & -j39.9 & j20 \\ 0 & j20 & -j39.95 \end{bmatrix}$ pu
  3. $\begin{bmatrix} -j19.95 & j20 & 0 \\ j20 & -j39.9 & j20 \\ 0 & j20 & -j19.95 \end{bmatrix}$ pu
  4. $\begin{bmatrix} -j19.95 & j20 & j20 \\ j20 & -j39.9 & j20 \\ j20 & j20 & -j19.95 \end{bmatrix}$ pu

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (C) $\begin{bmatrix} -j19.95 & j20 & 0 \\ j20 & -j39.9 & j20 \\ 0 & j20 & -j19.95 \end{bmatrix}$ pu

Explanation

The series reactance $0.05$ pu has admittance $-j20$, and each end also has a shunt susceptance of $j0.05$. The line contributed $-j20 + j0.05 = -j19.95$ to each of the diagonal elements $Y_{11}$ and $Y_{33}$, and $+j20$ to $Y_{13}$ and $Y_{31}$. Removing the line adds $+j19.95$ to the diagonals, giving $-j39.9 + j19.95 = -j19.95$, and takes $Y_{13} = Y_{31}$ to 0.
