GATE 2026 ME – Question 50

Engineering Mechanics · Kinematics and dynamics of rigid bodies in plane motion · 2 marks · Numerical answer

A rigid slender bar, AB, is sliding against two mutually perpendicular frictionless walls, as shown in the figure below. The velocity of A in the downward direction at a given instant is 6 m/s. At that instant, the magnitude of absolute velocity of the midpoint G is ________ m/s (*rounded off to 2 decimal places*).

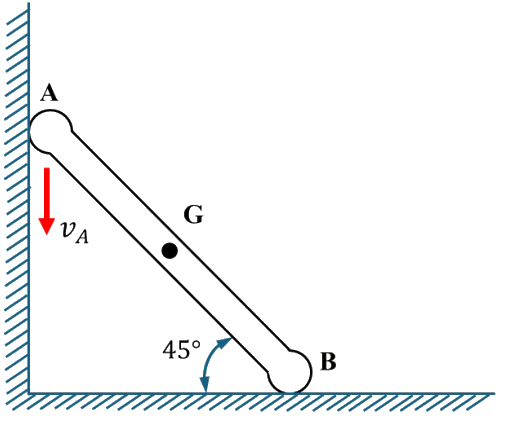

A bar AB with end A on a vertical wall and end B on the floor, making an angle of 45° with the floor. The midpoint is G, and $v_A$ points downward at 6 m/s.

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: 4.22 to 4.26

Explanation

The instantaneous centre of rotation is at the corner of the rectangle formed by the two walls, a distance $L\cos 45°$ horizontally from A. So $v_A = \omega L\cos 45°$, which gives $\omega L = \frac{6}{0.7071} = 8.485$. The midpoint is at a distance $\frac{L}{2}$ from the instantaneous centre, so $v_G = \frac{\omega L}{2} = 4.24$ m/s.
