GATE 2025 ME – Question 48

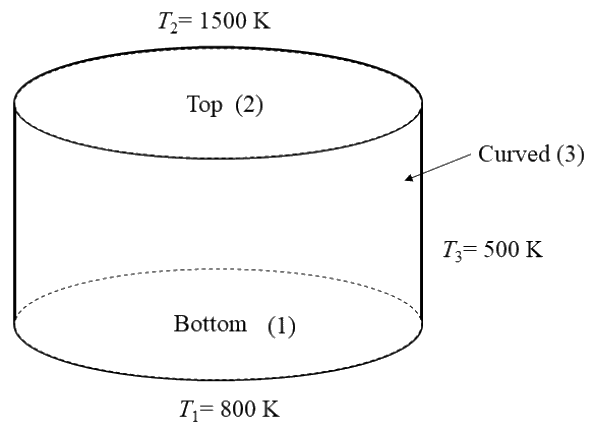

Consider a cylindrical furnace of 5 m diameter and 5 m length with bottom, top and curved surfaces maintained at uniform temperatures of 800 K, 1500 K and 500 K, respectively. The view factor between the bottom and top surfaces, $F_{12}$ is 0.2. The magnitude of net radiation heat transfer rate between the bottom surface and the curved surface is ____________ kW (rounded off to 1 decimal place).
All surfaces of the furnace can be assumed as black.
The Stefan-Boltzmann constant, $\sigma = 5.67 \times 10^{-8}$ W m$^{-2}$ K$^{-4}$.
Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: 307.55 to 310.65
Explanation
The bottom surface sees only the top and the curved surface, so $F_{11} = 0$, $F_{12} = 0.2$ and $F_{13} = 1 - 0.2 = 0.8$. The bottom area is $A_1 = \pi \times 2.5^2 = 19.63$ m$^2$. For black surfaces, $Q_{13} = A_1F_{13}\sigma(T_1^4 - T_3^4) = 19.63 \times 0.8 \times 5.67 \times 10^{-8} \times (800^4 - 500^4) = 309.1$ kW.
