GATE 2025 ME – Question 58

Mechanics of Materials · Energy methods · 2 marks · Numerical answer

An isotropic brittle material is tested in the universal testing machine. The stress-strain diagram for the material shows a bi-linear elastic behavior as shown in the figure given below. The strain energy density is ________ MJ m$^{-3}$ (rounded off to 2 decimal places).

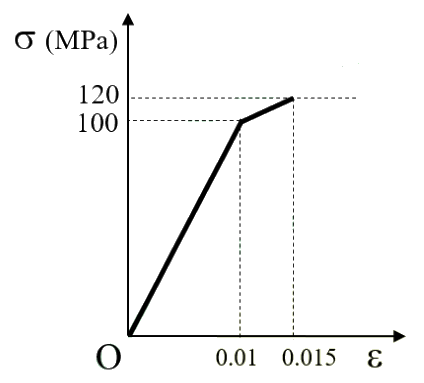

A $\sigma$-$\varepsilon$ plot made of two straight segments. The first runs from the origin to the point (0.01, 100 MPa), and the second continues to (0.015, 120 MPa).

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: 1.04 to 1.06

Explanation

The strain energy density is the area under the curve. The first triangle is $\frac{1}{2} \times 0.01 \times 100 = 0.5$ MJ/m$^3$. The second part is a trapezoid of width $0.005$ and average height $\frac{100 + 120}{2} = 110$ MPa, which is $0.55$ MJ/m$^3$. The total is $1.05$ MJ/m$^3$.
