GATE 2026 CE (CE2) – Question 8

General Aptitude · Quantitative Aptitude: Algebra, Geometry and Mensuration · 2 marks · Multiple choice

Consider a string P of length $l$ that is laid out as a straight-line segment. Another string K is laid out as a semicircular arc with string P as its diameter, as represented in Figure (i). When both the strings are shortened by a length $x$ they can be re-arranged such that the shortened string K forms a full circle with the shortened string P as its diameter, as represented in Figure (ii). The value of $x/l$ is __________

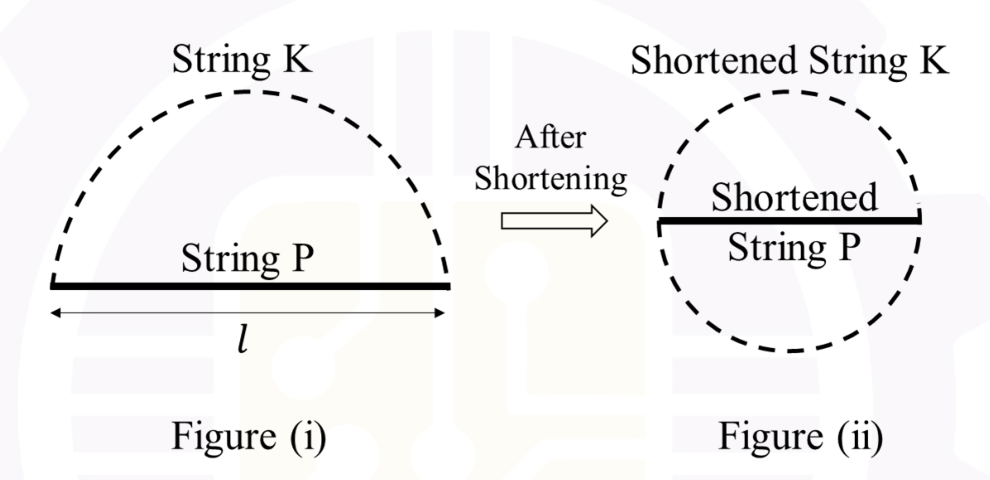

Figure (i) shows a straight string P of length l with a dashed semicircular string K above it, using P as the diameter. Figure (ii) shows the shortened strings, where the shortened K is a dashed full circle with the shortened P as a diameter across it.
  1. $\pi$
  2. $\frac{\pi - 1}{2\pi}$
  3. $\frac{\pi}{2(\pi - 1)}$
  4. $\frac{\pi}{\pi - 1}$

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (C) $\frac{\pi}{2(\pi - 1)}$

Explanation

String K is a semicircle of diameter $l$, so its length is $\frac{\pi l}{2}$. After shortening, P has length $l - x$ and K has length $\frac{\pi l}{2} - x$. K now forms a full circle with P as its diameter, so $\frac{\pi l}{2} - x = \pi (l - x)$. Then $\pi x - x = \pi l - \frac{\pi l}{2} = \frac{\pi l}{2}$, so $x(\pi - 1) = \frac{\pi l}{2}$ and $\frac{x}{l} = \frac{\pi}{2(\pi - 1)}$.
