GATE 2025 CE (CE1) – Question 51

Solid Mechanics · Simple stress and strain relationships · 2 marks · Numerical answer

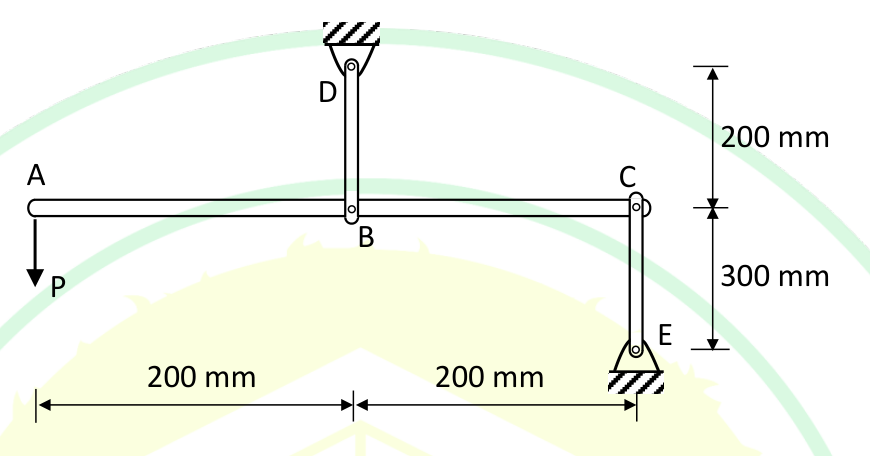

Consider the rigid bar ABC supported by the pin-jointed links BD and CE and subjected to a load $P$ at the end A, as shown in the figure. The axial rigidities of BD and CE are 22500 kN and 15000 kN, respectively. If CE elongates by 5 mm due to the load $P$, the magnitude of the downward deflection (in mm) of the end A would be ________________________ (*rounded off to the nearest integer*).

A horizontal rigid bar ABC with A at the left end, B 200 mm from A and C 200 mm further right. Link BD is vertical, 200 mm long, joining B to a support D above. Link CE is vertical, 300 mm long, joining C to a support E below. A downward load P acts at A.

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: 14
