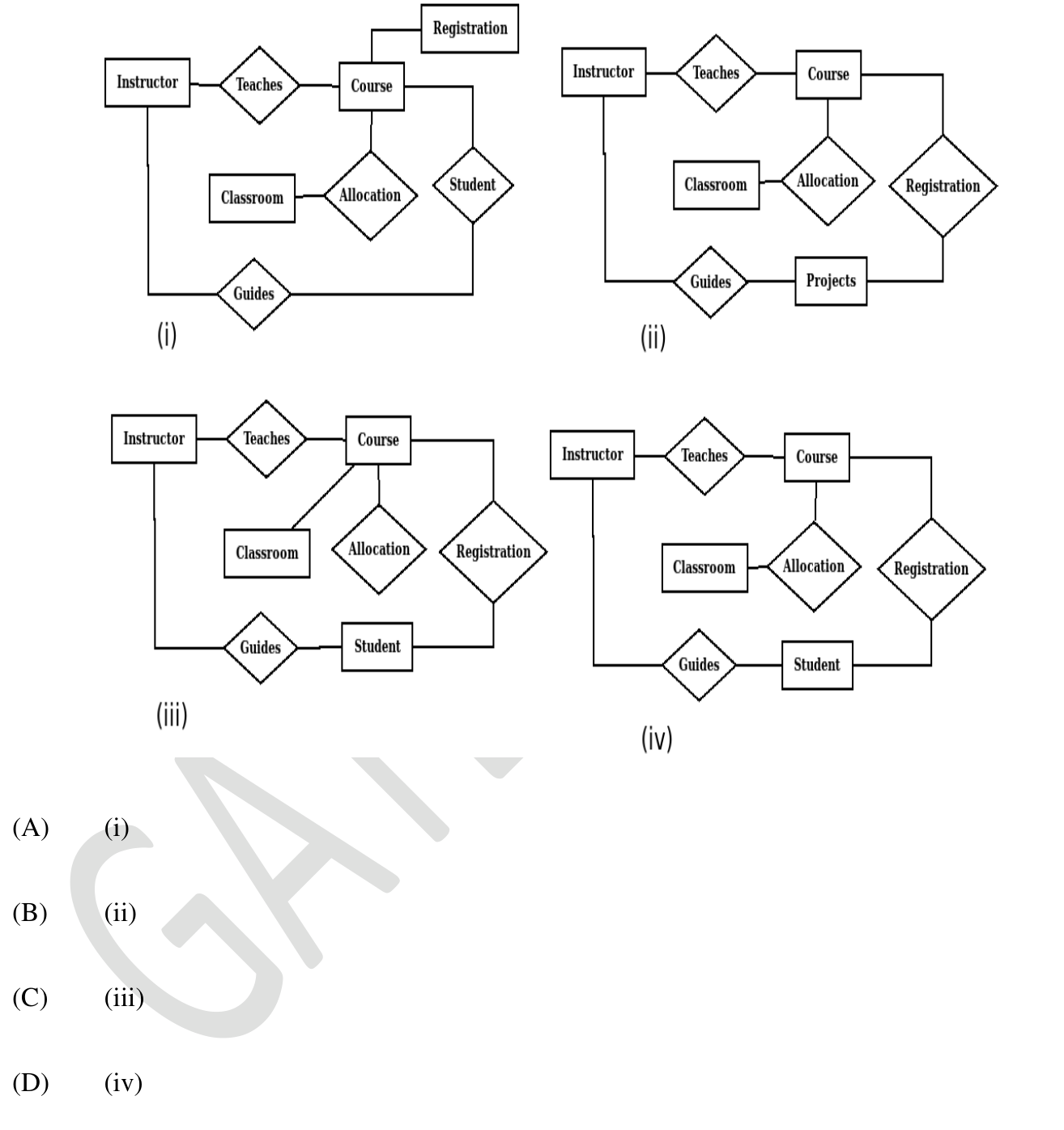

Let S be the specification: "Instructors teach courses. Students register for courses. Courses are allocated classrooms. Instructors guide students." Which one of the following ER diagrams CORRECTLY represents S?
Diagram (iv) has Instructor–Teaches–Course, Course–Allocation–Classroom, Student–Registration–Course, and Instructor–Guides–Student, all as relationships between entities. Others misuse entities as relationships or add spurious entities like Projects.
