GATE 2025 DA – Question 8

General Aptitude · Quantitative Aptitude: Algebra, Geometry and Mensuration · 2 marks · Multiple choice

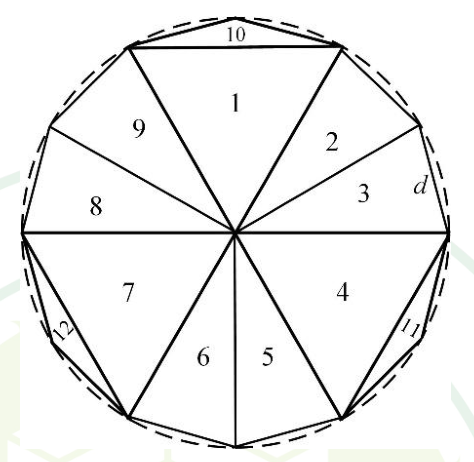

A regular dodecagon (12-sided regular polygon) is inscribed in a circle of radius $r$ cm as shown in the figure. The side of the dodecagon is $d$ cm. All the triangles (numbered 1 to 12) in the figure are used to form squares of side $r$ cm and each numbered triangle is used only once to form a square.

The number of squares that can be formed and the number of triangles required to form each square, respectively, are:

Note: The figure shown is representative.

Diagram for GATE 2025 DA question 8
  1. 3; 4
  2. 4; 3
  3. 3; 3
  4. 3; 2

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (A) 3; 4

Explanation

The numbered pieces are not twelve equal central triangles. Pieces 1,4,7 are equilateral triangles of side r; 2,3,5,6,8,9 have two radius sides enclosing 30°; and 10,11,12 are the small outer cap triangles.

One square uses pieces **1,2,3,10**. Put the equilateral triangle 1 on the square's bottom edge, with its apex at height √3r/2. Place triangles 2 and 3 against the left and right sides; the remaining cap 10 fills the top.

To verify the fit, take the square corners as (0,0),(r,0),(r,r),(0,r) and the shared interior vertex as (r/2,√3r/2). Joining that vertex to the four corners partitions the square into precisely those four shapes.

The congruent groups **4,5,6,11** and **7,8,9,12** make two more squares. Thus the result is **3 squares, 4 triangles each — A**. Independently, the dodecagon area is $12(r^2/2)\sin30^\circ=3r^2$, confirming the total area of three side-r squares.
