GATE 2024 DA – Question 64

Artificial Intelligence · Reasoning under uncertainty: Bayesian networks and inference · 2 marks · Numerical answer

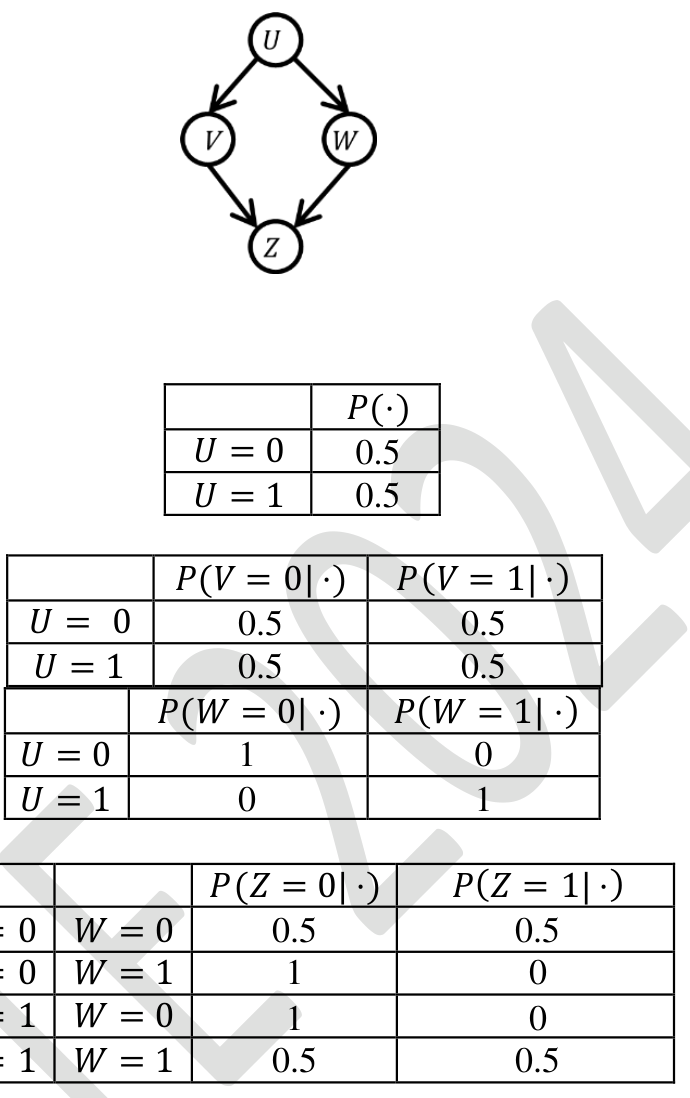

Given the following Bayesian Network consisting of four Bernoulli random variables and the associated conditional probability tables:

The value of $P(U = 1, V = 1, W = 1, Z = 1) = $ ______ (rounded off to three decimal places).

Diagram for GATE 2024 DA question 64

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: 0.115 to 0.135

Explanation

**1. Read the network parents.** U is the root; V and W each have parent U; Z has parents V and W. The network factorization is $P(U,V,W,Z)=P(U)P(V\mid U)P(W\mid U)P(Z\mid V,W)$.

**2. Select the rows for the requested assignment.** From the shown tables: P(U = 1) = 0.5, P(V = 1 | U = 1) = 0.5, P(W = 1 | U = 1) = 1, and P(Z = 1 | V = 1,W = 1) = 0.5.

**3. Multiply the four factors.** $0.5(0.5)(1)(0.5)=\mathbf{0.125}$. No marginalization is required because values of all four variables are specified; unconditional independence of the four variables is not being assumed.
