GATE 2023 ME – Question 58

Mechanics of Materials · Bending and shear stresses, shear centre · 2 marks · Numerical answer

The area moment of inertia about the y-axis of a linearly tapered section shown in the figure is _____________ m$^4$.
(Answer in integer)

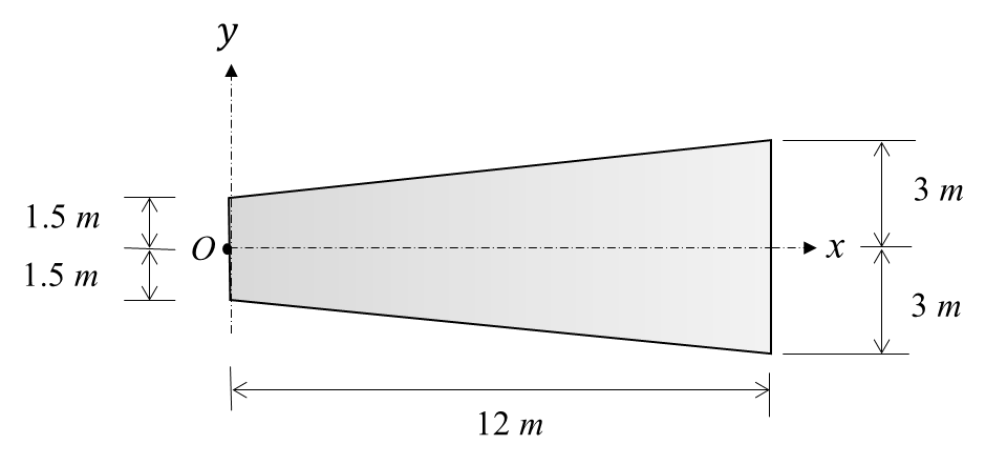

a linearly tapered plate of length 12 m along the x axis, starting at the y axis (x = 0) where its total height is 3 m (1.5 m on each side of the x axis) and growing to 6 m at x = 12 m (3 m on each side).

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: 3024

Explanation
