GATE 2024 CE (CE1) – Question 39

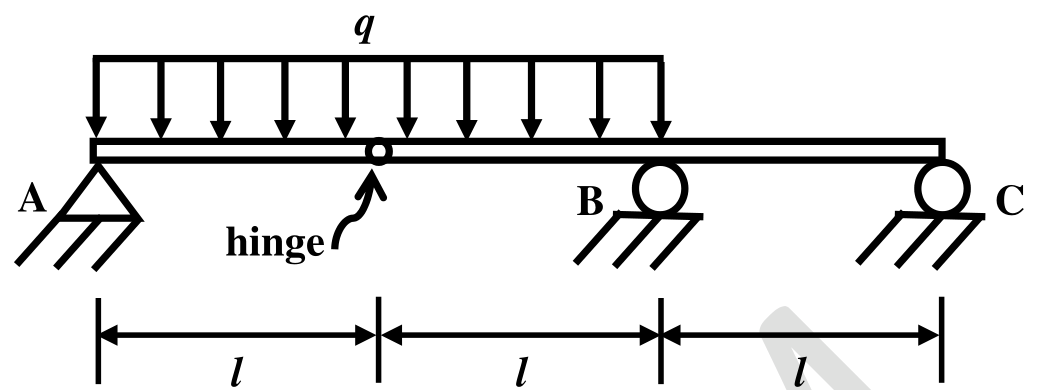

The beam shown in the figure is subjected to a uniformly distributed downward load of intensity $q$ between supports A and B.
Considering the upward reactions as positive, the support reactions are

Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: (A) $R_A = \frac{ql}{2}$; $R_B = \frac{5ql}{2}$; $R_C = -ql$
Explanation
The total load is $2ql$, so $R_A + R_B + R_C = 2ql$. The bending moment at the hinge is zero. For the part from A to the hinge (length $l$): $R_Al - q l\frac{l}{2} = 0$, so $R_A = \frac{ql}{2}$. For the part from the hinge to C, take moments about the hinge: $R_Bl + R_C(2l) - ql\frac{l}{2} = 0$, so $R_B + 2R_C = \frac{ql}{2}$. With $R_B + R_C = \frac{3ql}{2}$ this gives $R_C = -ql$ and $R_B = \frac{5ql}{2}$.
