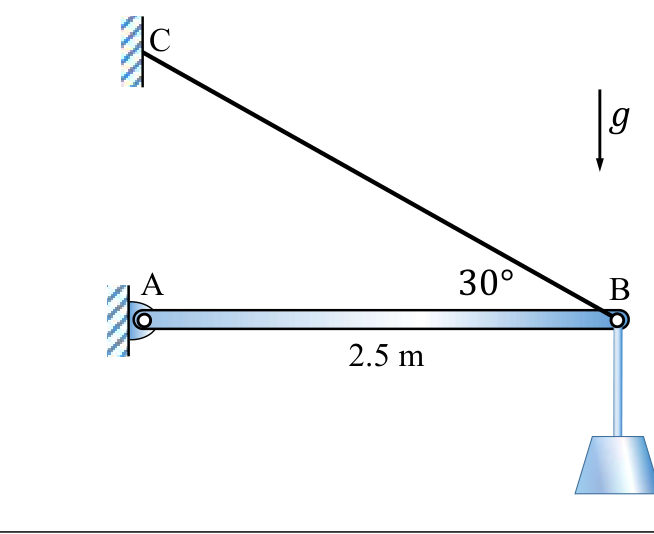

A uniform light slender beam AB of section modulus $EI$ is pinned by a frictionless joint A to the ground and supported by a light inextensible cable CB to hang a weight $W$ as shown. If the maximum value of $W$ to avoid buckling of the beam AB is obtained as $\beta\pi^2EI$, where $\pi$ is the ratio of circumference to diameter of a circle, then the value of $\beta$ is
The vertical equilibrium of joint B gives $T\sin 30° = W$, so the cable tension is $T = 2W$. The horizontal component $T\cos 30° = 1.732W$ compresses the beam. The beam is pinned at both ends (the cable end acts as a pin), so the Euler load is $\frac{\pi^2EI}{L^2}$ with $L = 2.5$ m. Then $1.732W = \frac{\pi^2EI}{6.25}$ and $W = \frac{\pi^2EI}{10.825} = 0.0924\pi^2EI$.
