GATE 2022 ME (ME1) – Question 49

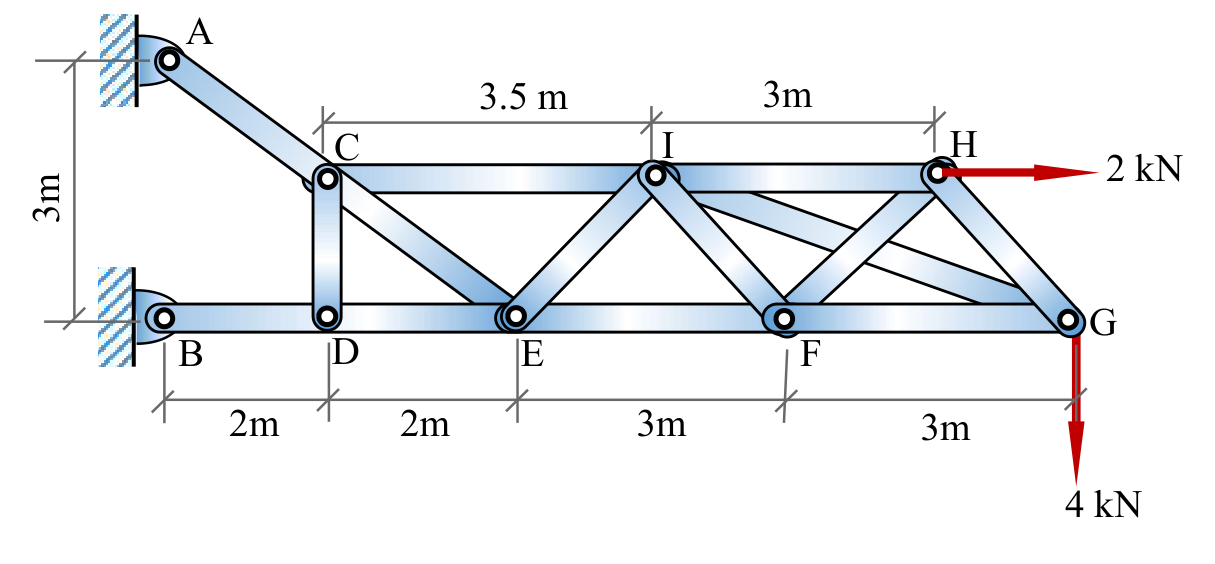

A structure, along with the loads applied on it, is shown in the figure. Self-weight of all the members is negligible and all the pin joints are friction-less. AE is a single member that contains pin C. Likewise, BE is a single member that contains pin D. Members GI and FH are overlapping rigid members. The magnitude of the force carried by member CI is ________ kN (in integer).

Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: 18 to 18
Explanation
Set up coordinates with B at (0, 0), so A is at (0, 3), D (2, 0), E (4, 0), F (7, 0), G (10, 0). C lies on AE above D at (2, 1.5), the top chord is at height 1.5 m, I is at (5.5, 1.5) and H at (8.5, 1.5). Members EI, IF and FH, HG are at 45°.
Cut the structure through the three members CI, EI and EF. The right-hand part (joints I, F, H, G with their members) then has only the loads and these three cut forces acting on it, so it can be solved by itself. Take tension as positive.
1. **Vertical balance.** Only EI has a vertical component, and the 4 kN load at G pulls down: $-\dfrac{T_{EI}}{\sqrt2}-4=0$, so $T_{EI}=-4\sqrt2=-5.66$ kN (compression).
2. **Moments about F** (this removes $T_{EF}$). CI acts at I, 1.5 m above F and 1.5 m to its left, so it gives $+1.5\,T_{CI}$. EI gives $\dfrac{3\,T_{EI}}{\sqrt2}=-12$. The 2 kN load at H (1.5 m above F) gives $-3$, and the 4 kN load at G (3 m from F) gives $-12$.
$1.5\,T_{CI}-12-3-12=0 \Rightarrow T_{CI}=\dfrac{27}{1.5}=18$ kN (tension).
So the force in member CI is 18 kN.
