GATE 2023 CE (CE2) – Question 42

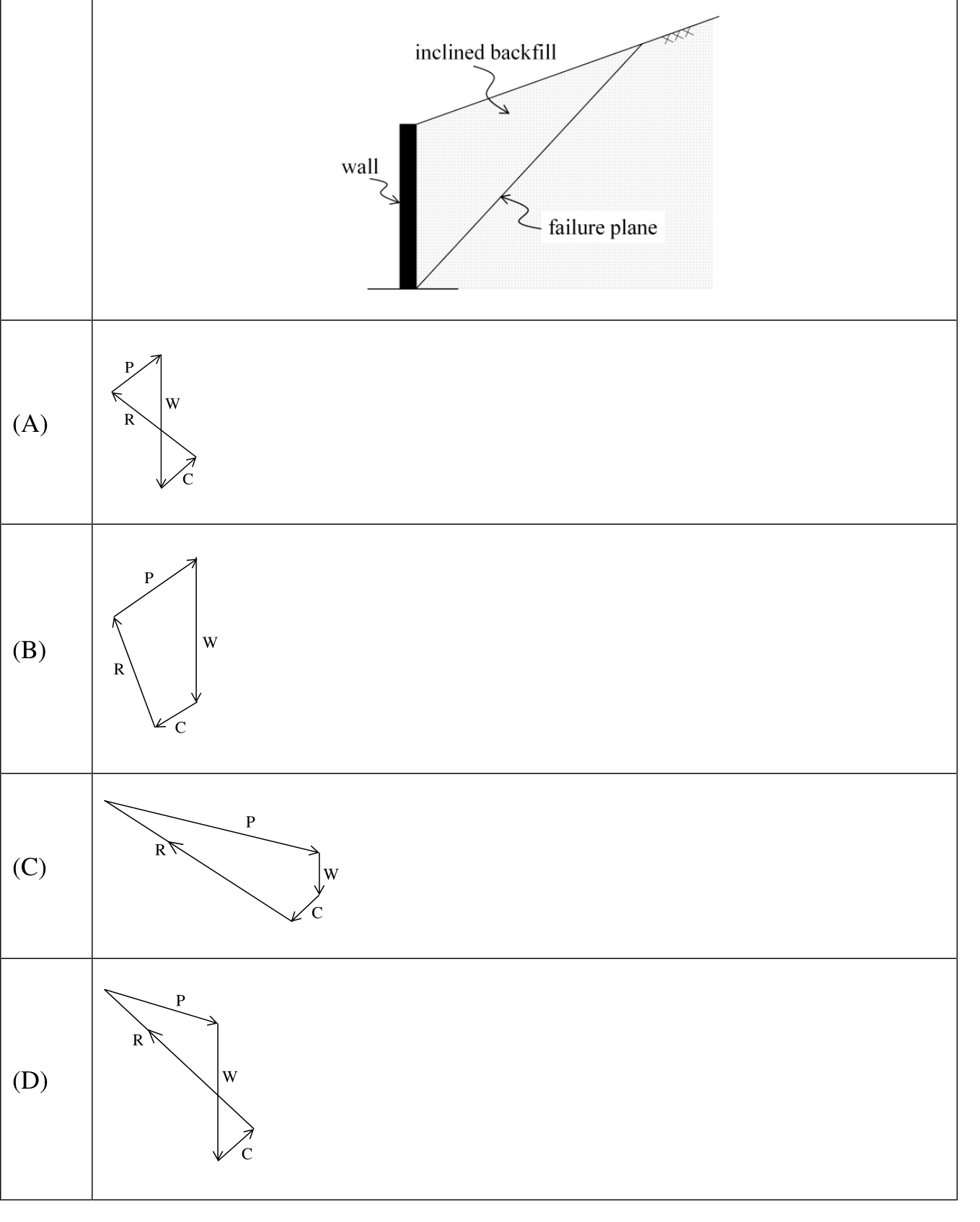

The figure shows a vertical retaining wall with backfill consisting of cohesive-frictional soil and a failure plane developed due to passive earth pressure. The forces acting on the failure wedge are: P as the reaction force between the wall and the soil, R as the reaction force on the failure plane, C as the cohesive force along the failure plane and W as the weight of the failure wedge. Assuming that there is no adhesion between the wall and the wedge, identify the most appropriate force polygon for the wedge.
Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: (C) Option C in the figure
Explanation
The wedge tends upward along the failure plane under passive loading, so cohesion acts down the plane. Weight is vertically downward; wall friction acts downward on the wedge, while the failure-plane reaction is inclined by friction from its normal. The wall reaction P points rightward and downward; the closing polygon with these directions is C.
