GATE 2022 CS – Question 22

Computer Networks · IPv4: Addressing, CIDR, Fragmentation and NAT · 1 mark · Multiple choice

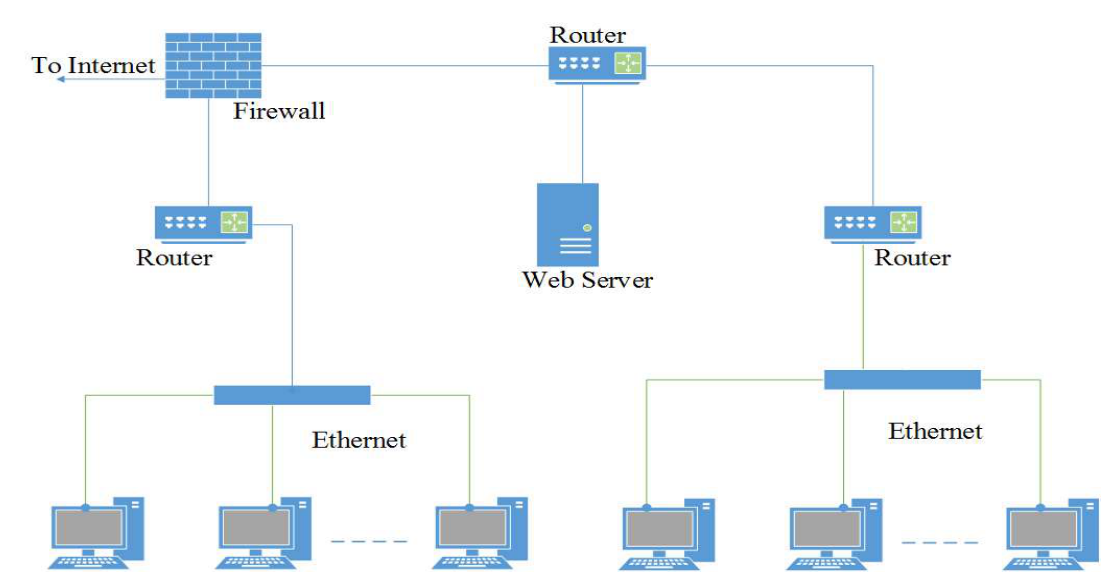

Consider an enterprise network with two Ethernet segments, a web server and a firewall, connected via three routers as shown below. [Figure: the firewall (to Internet) connects to the left router and to the top router; the top router connects to the web server and to the right router; the left router connects to Ethernet segment 1 and the right router to Ethernet segment 2.]
What is the number of subnets inside the enterprise network?

Diagram for GATE 2022 CS question 22
  1. 3
  2. 12
  3. 6
  4. 8

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (C) 6

Explanation

Each router-to-router, router-to-firewall, router-to-server and router-to-Ethernet link is a separate subnet. That gives firewall–left router, left router–Ethernet 1, firewall–top router, top router–web server, top router–right router, and right router–Ethernet 2, for 6 subnets.
