GATE 2024 PH – Question 18

Electronics · p-n diodes, bipolar junction transistors, field effect transistors · 1 mark · Multiple choice

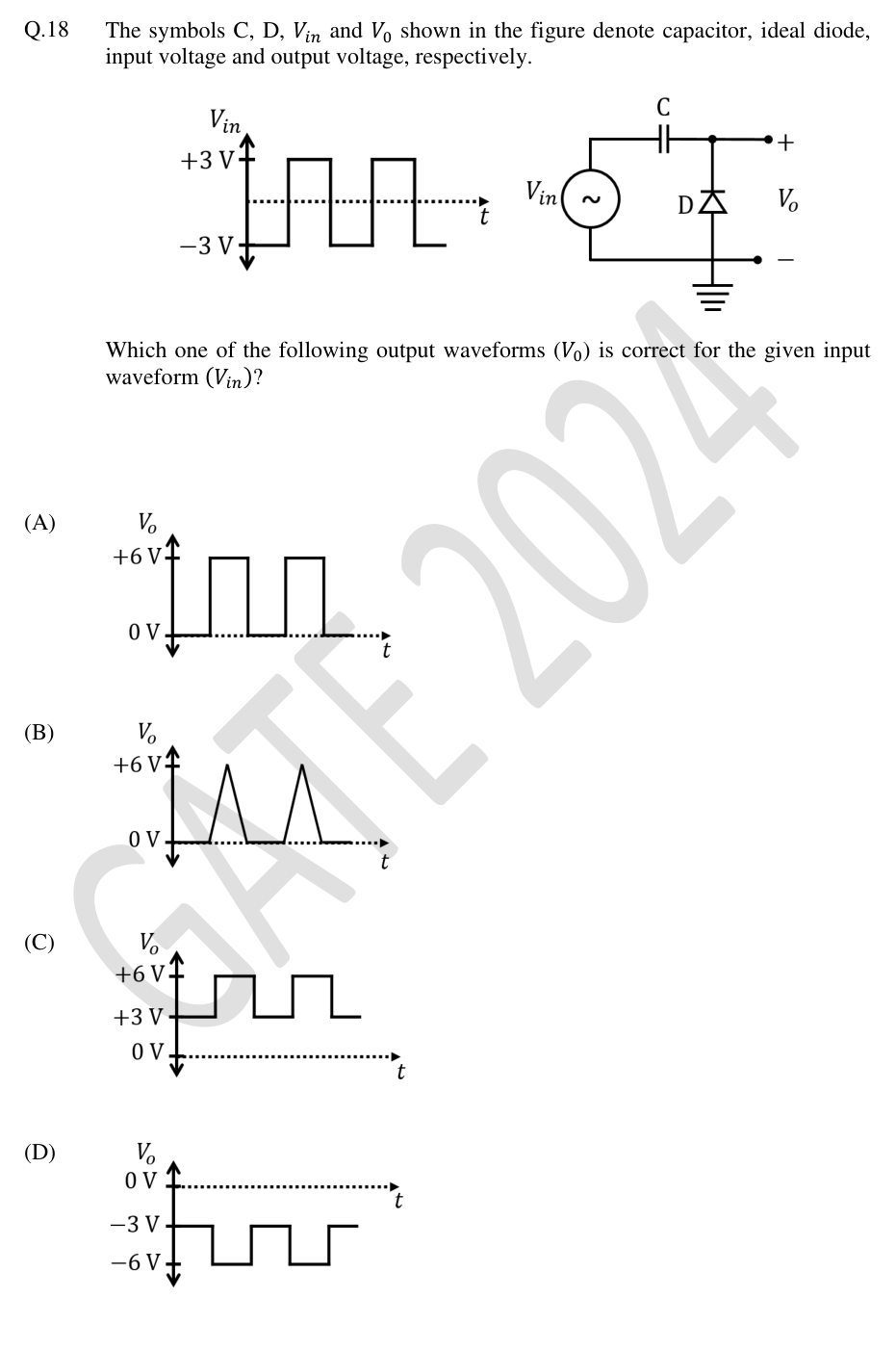

The symbols C, D, Vin and V0 shown in the figure denote capacitor, ideal diode, input voltage and output voltage, respectively. Which one of the following output waveforms (V0) is correct for the given input waveform (Vin)?

Capacitor and diode clamping circuit, square-wave input, and candidate outputs.
  1. Option A in the figure
  2. Option B in the figure
  3. Option C in the figure
  4. Option D in the figure

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (A) Option A in the figure

Explanation

The diode clamps the negative output level at zero. The capacitor retains the 6 V peak-to-peak swing, so the output alternates between 0 and +6 V.
