GATE 2017 CE (CE2) – Question 47

Geotechnical Engineering · Stability of slopes · 2 marks · Multiple choice

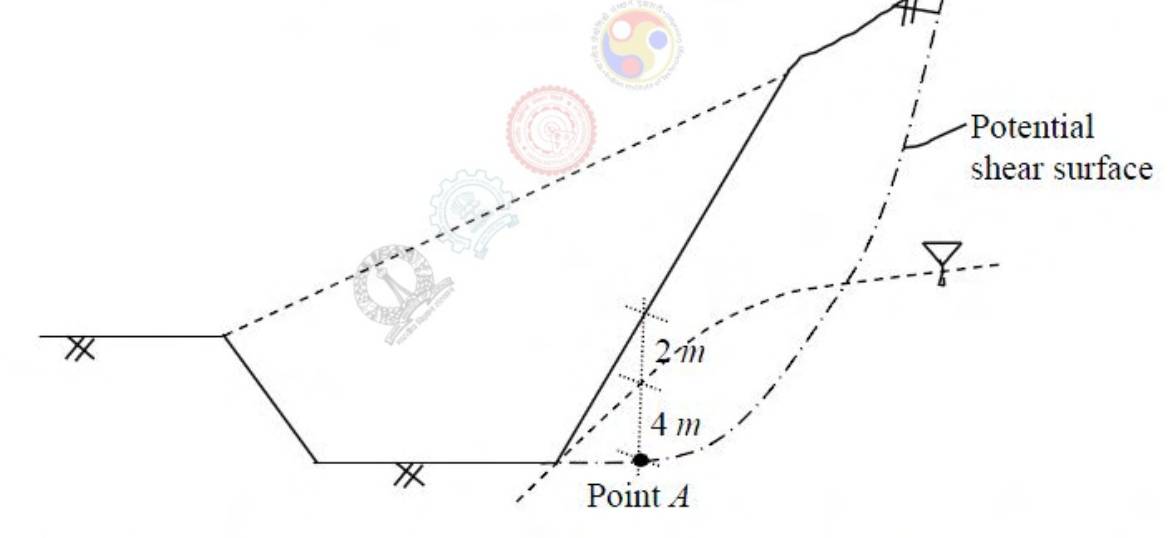

At A on the potential slip surface of the highway cut shown, shear stress is 50 kPa. Soil parameters are $c^\prime=20$ kPa, $\phi^\prime=18^\circ$, $s_u=80$ kPa; unit weights above/below groundwater are 18/20 kN/m³. Take water unit weight 9.81 kN/m³. Factors of safety for undrained and drained conditions, respectively, are ______.

Diagram for GATE 2017 CE (CE2) question 47
  1. 1.6 and 0.9
  2. 0.9 and 1.6
  3. 0.6 and 1.2
  4. 1.2 and 0.6

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (A) 1.6 and 0.9

Explanation

Undrained safety factor is $s_u/\tau=80/50=1.6$. At A, total normal stress is $18(2)+20(4)=116$ kPa and pore pressure is $9.81(4)=39.24$ kPa. Drained strength is $20+(116-39.24)\tan18^\circ=44.94$ kPa, giving $F=44.94/50\approx0.9$. Answer A.
