GATE 2014 EC (EC2) – Question 29

Networks, Signals and Systems · Continuous-time Signals · 1 mark · Numerical answer

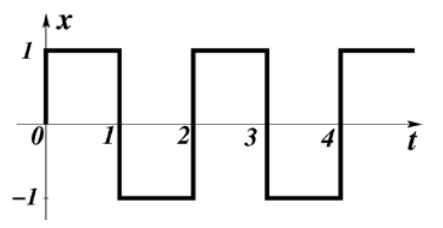

For the periodic square wave shown, find the approximate ratio of power in the seventh harmonic to that in the fifth.

Diagram for GATE 2014 EC (EC2) question 29

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: 0.50 to 0.52

Explanation

For a50%duty-cycle symmetric square wave, odd-harmonic amplitudes are proportional to1/n, so harmonic powers scale as1/n². The ratio P7/P5=(5/7)²=25/49=**0.510204**. The common amplitude and impedance factors cancel.
