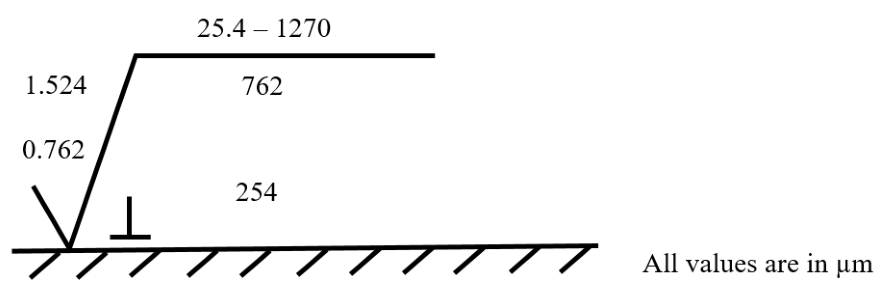

The two roughness limits are 1.524 and 0.762 µm. Their difference is 1.524−0.762 = **0.762 µm, C**. The other annotations specify different texture parameters.
