GATE 2025 EE – Question 59

Electrical and Electronic Measurements · Bridges and Potentiometers · 2 marks · Numerical answer

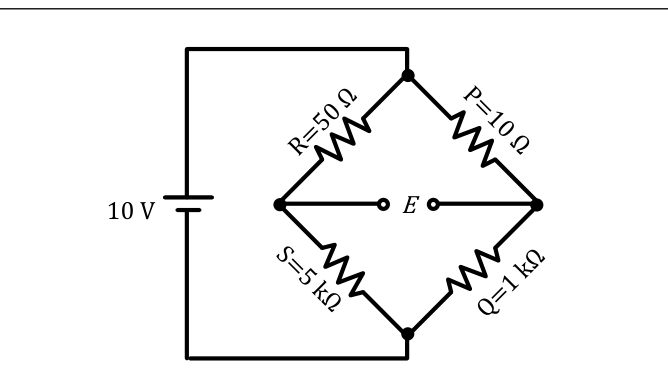

In the Wheatstone bridge shown below, the sensitivity of the bridge in terms of change in balancing voltage $E$ for unit change in the resistance $R$, in mV/Ω, is ______________ (round off to two decimal places).

Diagram for GATE 2025 EE question 59

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: 1.95 to 1.97

Explanation

**1. Write the detector voltage from the two dividers.** With the stated polarity, $E=V[S/(R+S)-Q/(P+Q)]$. The bridge is initially balanced because R/S = P/Q = 0.01.

**2. Differentiate only the varying resistance.** Holding V,S,P,Q fixed gives $dE/dR=-VS/(R+S)^2$. Bridge sensitivity here is the magnitude of that slope; the sign depends on detector polarity.

**3. Substitute and convert volts to millivolts.** With V = 10 V, R = 50 Ω and S = 5000 Ω, $|dE/dR|=50000/5050^2\approx0.00196059$ V/Ω. Multiplying by 1000 gives **1.96 mV/Ω**. A zero balanced voltage does not imply zero small-signal sensitivity.
