GATE 2024 EE – Question 21

Control Systems · Transient and Steady-state analysis of linear time invariant systems · 1 mark · Multiple choice

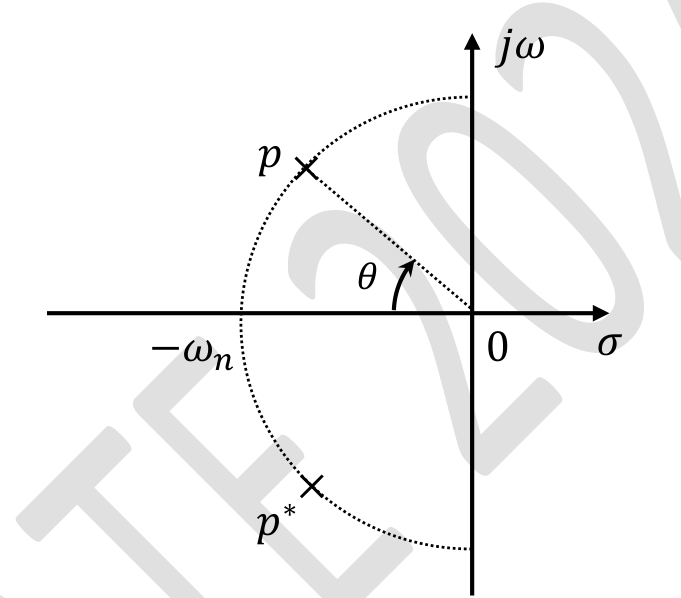

Consider the standard second-order system of the form $\dfrac{\omega_n^2}{s^2+2\zeta\omega_ns+\omega_n^2}$ with the poles $p$ and $p^*$ having negative real parts. The pole locations are also shown in the figure. Now consider two such second-order systems as defined below:

System 1: $\omega_n=3$ rad/sec and $\theta=60^\circ$

System 2: $\omega_n=1$ rad/sec and $\theta=70^\circ$

Which one of the following statements is correct?

Diagram for GATE 2024 EE question 21
  1. Settling time of System 1 is more than that of System 2.
  2. Settling time of System 2 is more than that of System 1.
  3. Settling times of both the systems are the same.
  4. Settling time cannot be computed from the given information.

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (B) Settling time of System 2 is more than that of System 1.

Explanation

The settling time is $T_s\approx\dfrac4{\zeta\omega_n}=\dfrac4{|\sigma|}$, and the real part of the poles is $\sigma=\omega_n\cos\theta$ (with $\theta$ measured from the negative real axis). System 1: $3\cos60^\circ=1.5$. System 2: $1\cdot\cos70^\circ=0.342$. A smaller $|\sigma|$ means a longer settling time, so System 2 settles more slowly.
