GATE 2024 EE – Question 20

Control Systems · Mathematical modelling and representation of systems, Feedback principle, Transfer function, Block diagrams and Signal flow graphs · 1 mark · Multiple choice

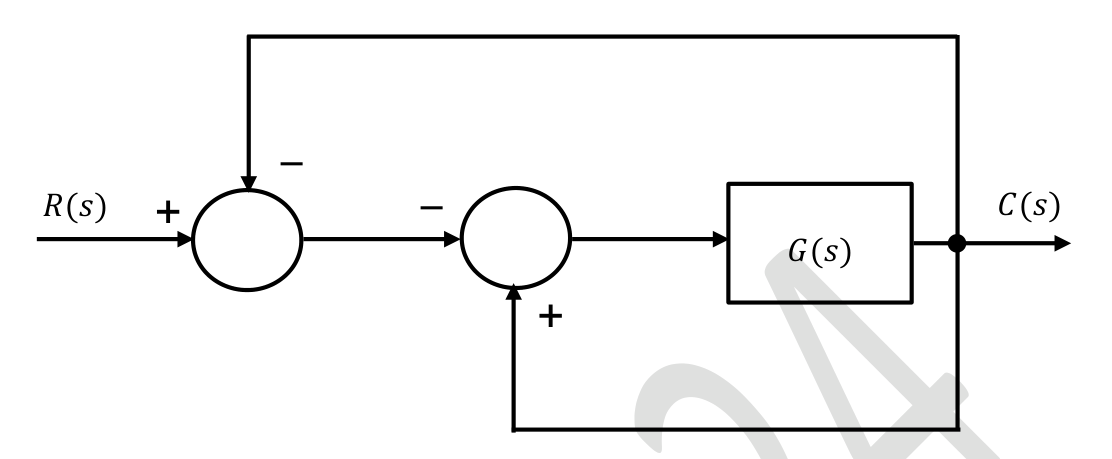

For the block-diagram shown in the figure, the transfer function $\dfrac{C(s)}{R(s)}$ is

Diagram for GATE 2024 EE question 20
  1. $\dfrac{G(s)}{1+2G(s)}$
  2. $-\dfrac{G(s)}{1+2G(s)}$
  3. $\dfrac{G(s)}{1-2G(s)}$
  4. $-\dfrac{G(s)}{1-2G(s)}$

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (D) $-\dfrac{G(s)}{1-2G(s)}$

Explanation

The first summer gives $e_1=R-C$ (outer negative feedback). The second summer takes $-e_1$ and $+C$ (inner positive feedback): $e_2=-(R-C)+C=-R+2C$. Then $C=G\,e_2=G(-R+2C)$, so $C(1-2G)=-GR$ and $\dfrac CR=-\dfrac{G}{1-2G}$.
