GATE 2021 EE – Question 21
Control Systems · Mathematical modelling and representation of systems, Feedback principle, Transfer function, Block diagrams and Signal flow graphs · 1 mark · Multiple choice

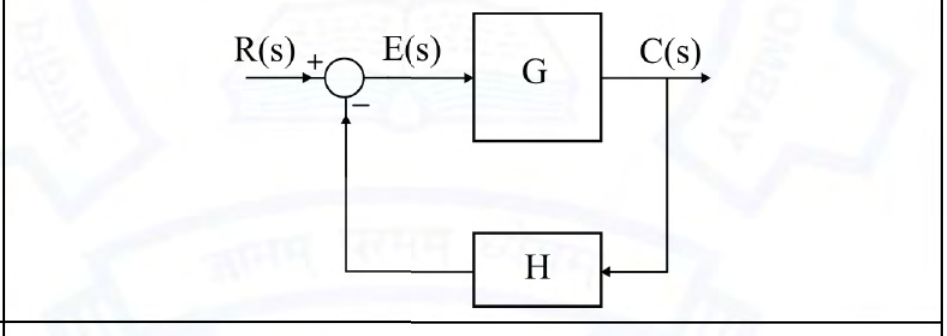

For the closed-loop system shown, the transfer function $\dfrac{E(s)}{R(s)}$ is

- $\dfrac{G}{1+GH}$
- $\dfrac{GH}{1+GH}$
- $\dfrac{1}{1+GH}$
- $\dfrac{1}{1+G}$
Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: (C) $\dfrac{1}{1+GH}$
Explanation
From the diagram, $E=R-HC$ and $C=GE$. Substituting, $E=R-GHE$, so $E(1+GH)=R$ and
$\dfrac ER=\dfrac1{1+GH}$.
