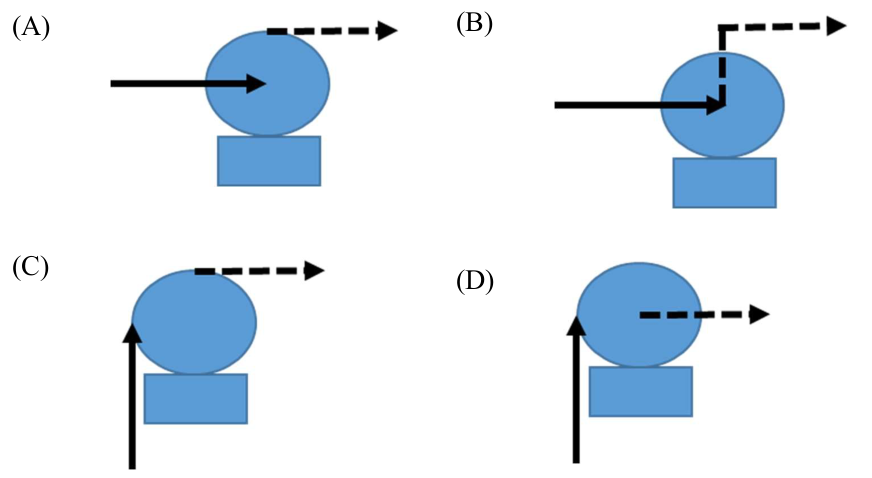

A centrifugal pump takes water axially into the impeller eye and discharges it tangentially from the casing. **A** shows suction into the central eye and tangential delivery. In B the delivery begins centrally; C and D place suction tangentially, contrary to the required arrangement.
