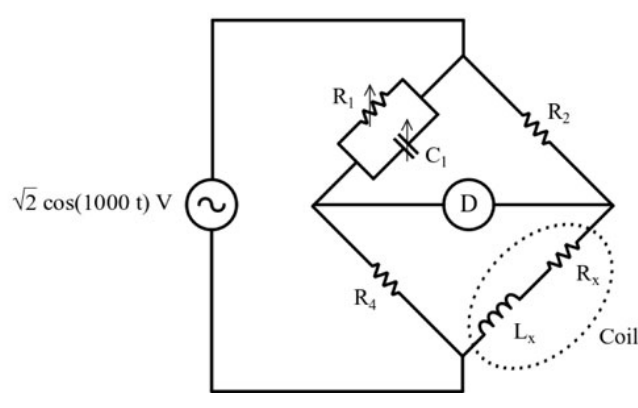

For the balanced Maxwell–Wien bridge with a parallel R₁–C₁ standard arm, coil parameters satisfy $L_x=R_2R_4C_1$ and $R_x=R_2R_4/R_1$. Hence $Q=\omega L_x/R_x=\omega R_1C_1$. With ω = 1000 rad/s, R₁ = $10^5$ Ω and C₁ = $10^{-7}$ F, Q = 10. The other bridge resistances cancel.
