GATE 2023 EE – Question 10

General Aptitude · Quantitative Aptitude: Algebra, Geometry and Mensuration · 2 marks · Multiple choice

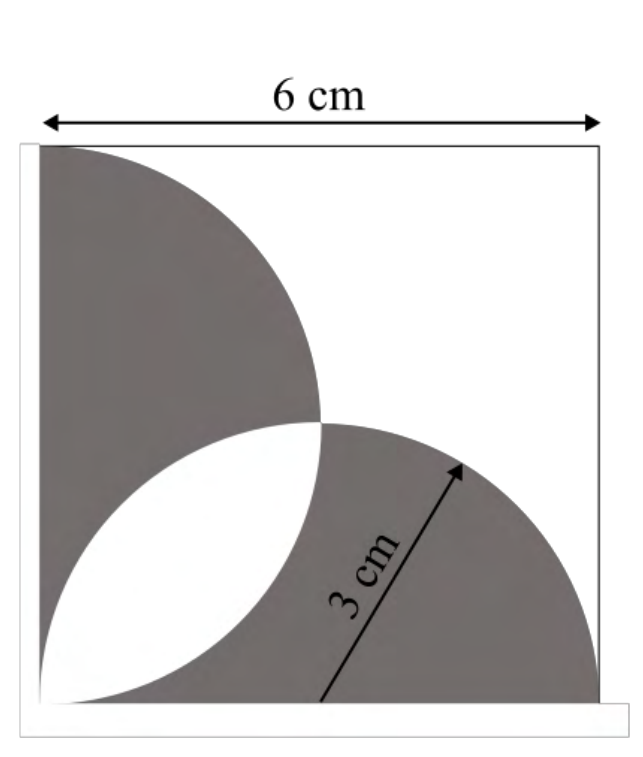

A square with sides of length 6 cm is given. The boundary of the shaded region is defined by two semi-circles whose diameters are the sides of the square, as shown.

The area of the shaded region is _______ cm².

Diagram for GATE 2023 EE question 10
  1. $6\pi$
  2. 18
  3. 20
  4. $9\pi$

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (B) 18

Explanation

Let A and B be the two radius-3 semicircular regions. Their overlap consists of two equal circular segments, each a 90° sector minus a right triangle of legs 3:
$$[A\cap B]=2\left(\frac{9\pi}{4}-\frac92\right)
=\frac{9\pi}{2}-9.$$
The shaded parts belong to exactly one semicircle. Summing the semicircle areas counts the overlap twice, so subtract it twice:
$$[A]+[B]-2[A\cap B]
=9\pi-2\left(\frac{9\pi}{2}-9\right)=18.$$
Thus **18 cm², B**. Subtracting the overlap only once would give the union including the white lens, not the shaded region.
