GATE 2017 CS (CS2) – Question 10

General Aptitude · Spatial Aptitude: Spatial Reasoning and Visualization · 2 marks · Multiple choice

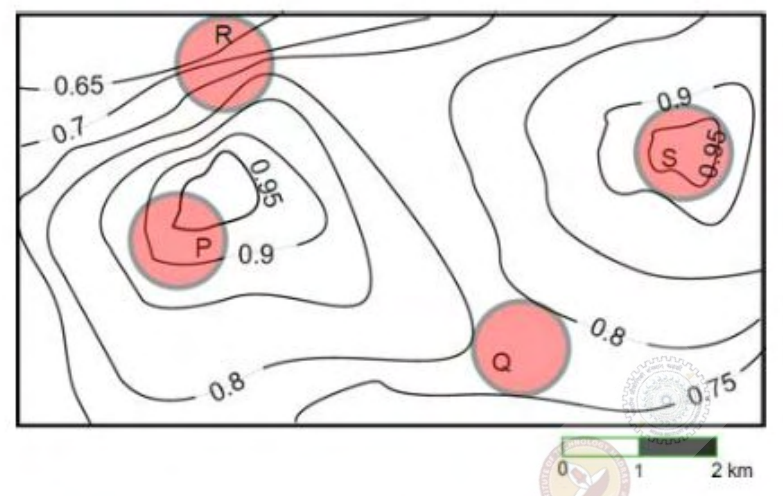

An air-pressure contour joins locations of equal atmospheric pressure. The shown contours occur at 0.05 bar intervals. Thunderstorm possibility depends on how rapidly pressure rises or falls across a region. Which region P,Q,R,S is most likely to have a thunderstorm?

Diagram for GATE 2017 CS (CS2) question 10

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (C) R

Explanation

For equal contour increments, closer lines mean a larger pressure gradient: a fixed pressure change occurs over a shorter horizontal distance. The contours are closest near R, so the pressure changes most rapidly there. Therefore region R, option C.
