GATE 2012 CS (CS1) – Question 36

Engineering Mathematics · Discrete Mathematics: Graphs (Connectivity, Matching, Colouring) · 2 marks · Multiple choice

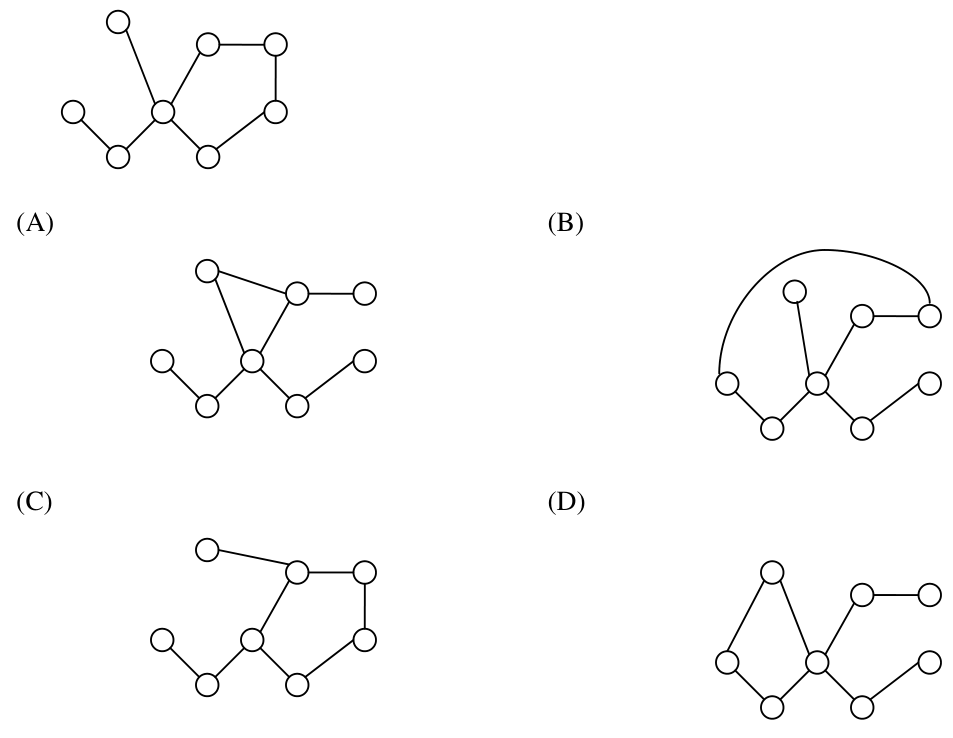

Which graph A,B,C,D is isomorphic to the given graph?

Diagram for GATE 2012 CS (CS1) question 36

Graph A
Graph B
Graph C
Graph D

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (B) Graph B

Explanation

The given graph has a five-cycle with a degree-four vertex. That vertex has one additional leaf attached directly and another leaf attached through a two-edge path. Matching both the degree sequence and the adjacency of high-degree vertices rules out the other drawings. Graph B admits the required adjacency-preserving relabelling, so B.
