GATE 2023 EE – Question 61

Electromagnetic Fields · Biot-Savart law, Ampere law, Curl, Faraday law, Lorentz force · 2 marks · Numerical answer

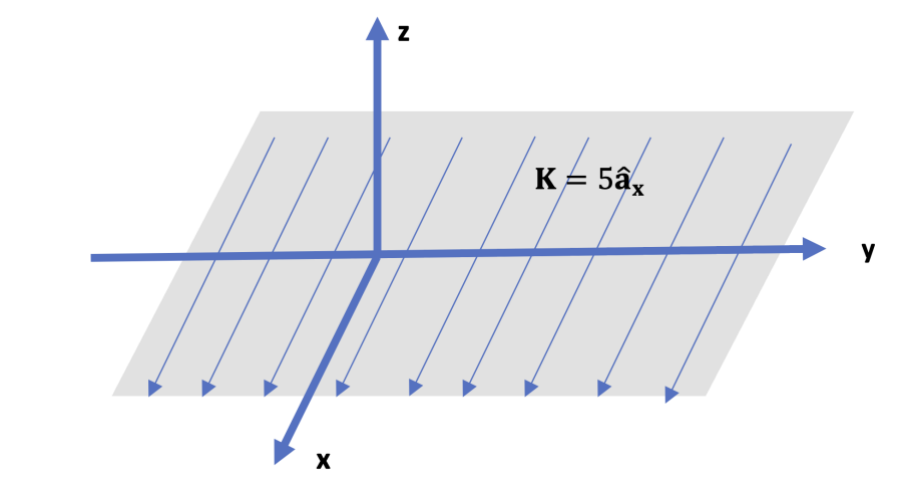

An infinite surface of linear current density $\mathbf K=5\hat{\mathbf a}_x$ A/m exists on the x-y plane, as shown in the figure. The magnitude of the magnetic field intensity ($\mathbf H$) at a point (1,1,1) due to the surface current in Ampere/meter is _______ (Round off to 2 decimal places).

Diagram for GATE 2023 EE question 61

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: 2.49 to 2.51

Explanation

For an infinite current sheet the field magnitude is independent of distance: $H=\dfrac K2=\dfrac52=2.50$ A/m.
