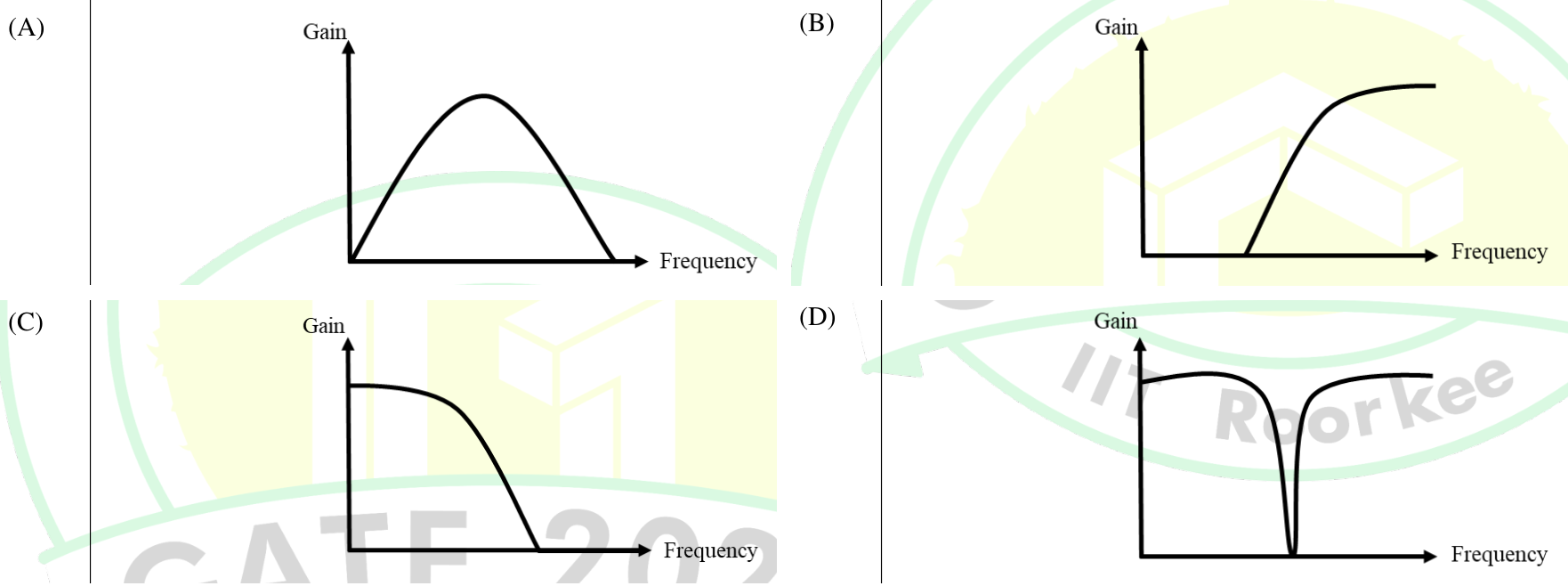

A notch filter suppresses a narrow band around a selected frequency while passing frequencies on either side. D shows a sharp interior dip with higher gain on both sides. A is band-pass, B high-pass, and C low-pass. Thus D.
