GATE 2017 EE (EE2) – Question 13

Electromagnetic Fields · Biot-Savart law, Ampere law, Curl, Faraday law, Lorentz force · 1 mark · Multiple choice

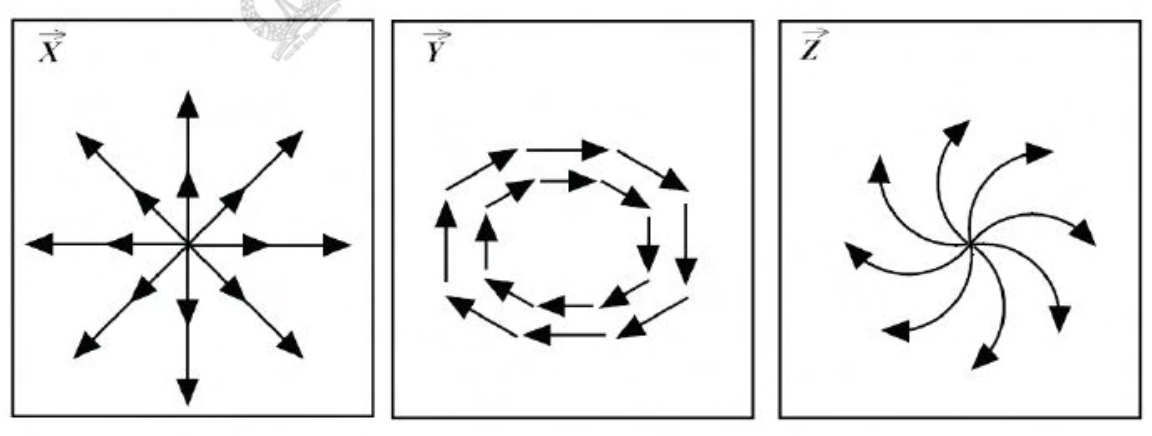

The figures represent vector fields $\mathbf X,\mathbf Y,\mathbf Z$, respectively. Which statement is true?

Diagram for GATE 2017 EE (EE2) question 13

$\nabla\cdot\mathbf X=0,\ \nabla\times\mathbf Y\ne0,\ \nabla\times\mathbf Z=0$
$\nabla\cdot\mathbf X\ne0,\ \nabla\times\mathbf Y=0,\ \nabla\times\mathbf Z\ne0$
$\nabla\cdot\mathbf X\ne0,\ \nabla\times\mathbf Y\ne0,\ \nabla\times\mathbf Z\ne0$
$\nabla\cdot\mathbf X=0,\ \nabla\times\mathbf Y=0,\ \nabla\times\mathbf Z=0$

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (C) $\nabla\cdot\mathbf X\ne0,\ \nabla\times\mathbf Y\ne0,\ \nabla\times\mathbf Z\ne0$

Explanation

X has outward radial arrows, indicating a source and nonzero divergence. Y circulates around the centre, indicating nonzero curl.

Z combines outward spreading with rotation: its curved spiral arrows retain a circulating component, so its curl is also nonzero. The three nonzero conditions are precisely those in **C**. Divergence measures source strength, while curl measures local circulation.
