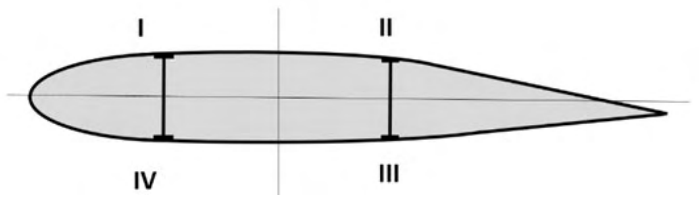

A steady pull-out at the wing’s largest permitted positive angle of attack gives the positive high-angle-of-attack condition. In which labelled wing region does maximum tension occur?
Positive lift bends the wing upward, putting the lower skin in tension and upper skin in compression. At the positive high-angle-of-attack design condition, the combined bending/torsional loading in the illustrated box gives the critical lower rear region III, C. The upper labels cannot carry the maximum positive bending tension; the high-angle condition distinguishes the rear lower location from the other lower corner.
