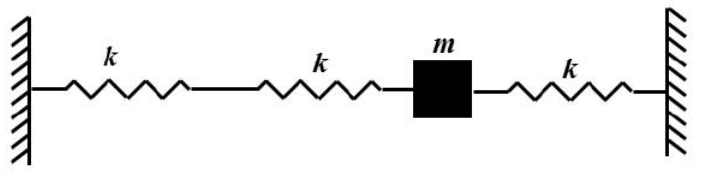

The two left springs are in series, giving k/2. Their combination and the right spring both resist mass displacement, so $k_{eq}=k/2+k=30000$ N/m. Then $\omega_n=\sqrt{k_{eq}/m}=100$ rad/s and $f_n=\omega_n/(2\pi)=15.92$ Hz, or 16.
