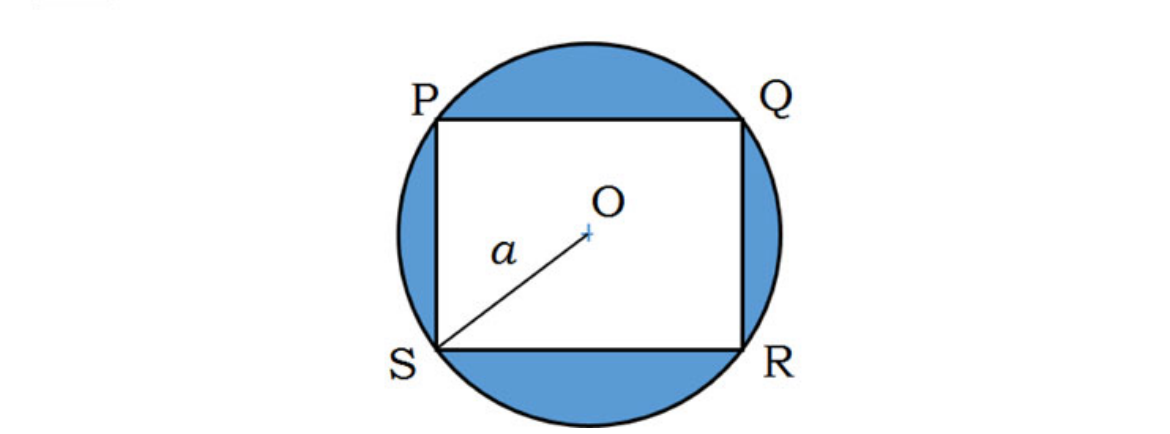

A circle with centre O is shown in the figure. A rectangle PQRS of maximum possible area is inscribed in the circle. If the radius of the circle is $a$, then the area of the shaded portion is ________.
The rectangle of maximum area inscribed in a circle is a square whose diagonal is the diameter $2a$. Its side is $\sqrt2a$ and its area is $2a^2$. The shaded area is $\pi a^2-2a^2$.
