Correct answer: (A) At 200 K, increasing pressure from 1 to 50 atm condenses gas to liquid.
Explanation

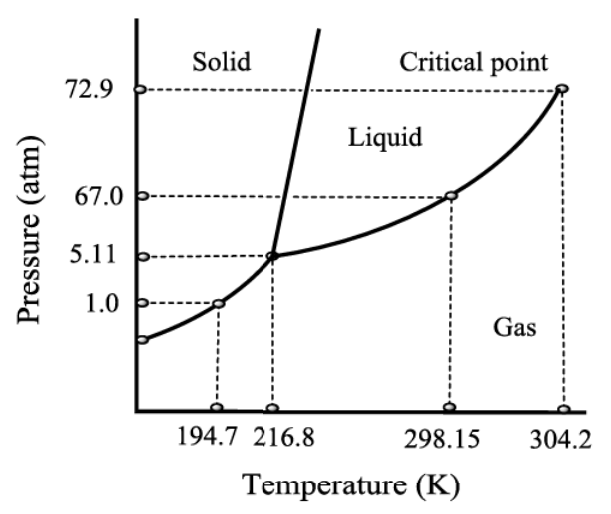

200 K is below the 216.8 K triple-point temperature. On compression at that temperature, gas becomes solid rather than equilibrium liquid, so A is false. The plotted coexistence curve and positively sloped solid–liquid boundary support the remaining statements.
