GATE 2019 MT – Question 59

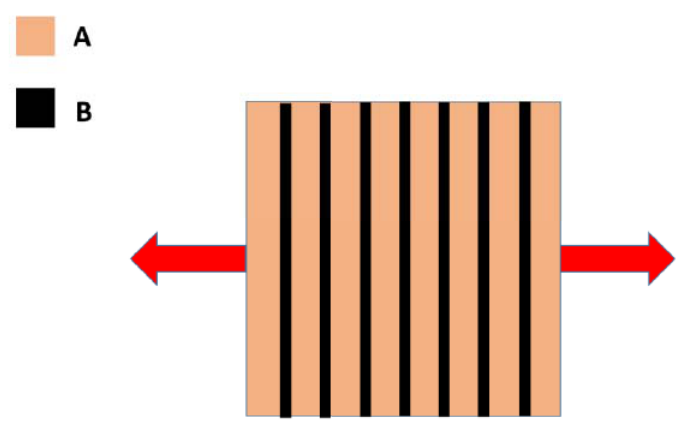

A composite has alternating layers of metals A and B, with 25 vol% B. Their elastic moduli are 200 and 100 GPa. Loading is perpendicular to the layers as shown. Find effective modulus in GPa (one decimal place).
Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: 155.0 to 165.0
Explanation
Loading normal to layers gives equal stress, while total strain is the volume-weighted average. Thus $1/E_c=V_A/E_A+V_B/E_B=0.75/200+0.25/100=0.00625$ GPa⁻¹. Therefore Ec=160.0 GPa. The arithmetic rule would apply for loading parallel to layers.
