GATE 2026 MN – Question 19

Mining Geology, Mine Development and Surveying · Mining Geology · 1 mark · Multiple choice

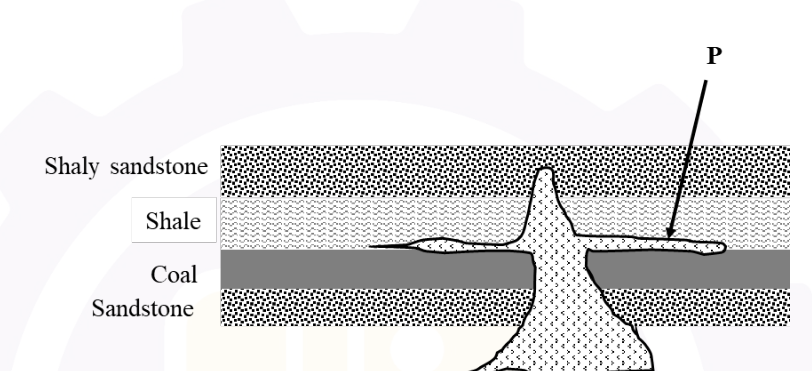

What is the igneous intrusion P, which follows the coal seam’s bedding plane?

Dyke
Washout
Sill
Seam split

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (C) Sill

Explanation

A sill is a concordant igneous intrusion lying along existing strata, matching the indicated bedding-parallel feature. A dyke cuts across bedding; a washout and seam split describe different geological disruptions. Therefore C.
