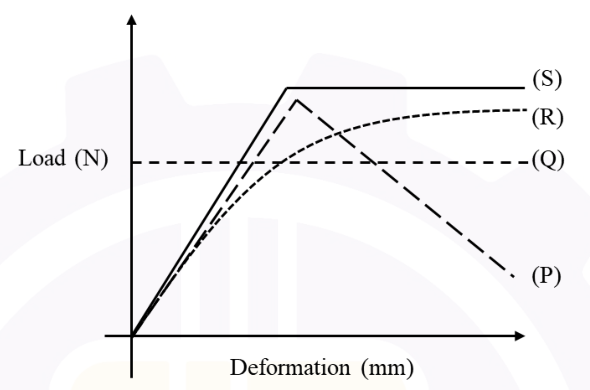

An ideal hydraulic prop first increases load as it is compressed, then yields at an approximately constant set pressure/load through its relief mechanism. Curve S has this rising branch followed by a horizontal yielding plateau, so D. Curve P instead loses capacity after its peak.
